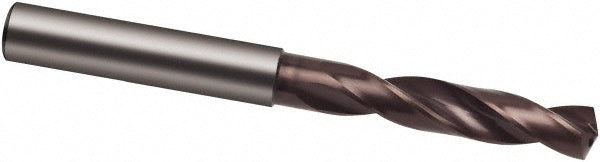

0.1181" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Guhring 9085200030000
MFR# 9085200030000Series 8520
$140.84List $180.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The Guhring 9085200030000 is a 0.1181" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 140° point. Suited for steel, high-temp alloy. Series 8520.
Specifications
Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit gradeHigh Performance
Drill bit size0.1181
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle140
Flute by diameter ratio3xD
Flute length (mm)20.00
Flute typeRegular Spiral
Material gradeK40
Maximum drilling depth0.6100
Number of flutes2
Number of margins2
Overall length2.4409
Point typeCone Relief
Primary workpiece materialSteel; High-Temp Alloy
Shank diameter0.2362
Shank length1.6535
Shank typeStraight
Specification designationDIN
Spiral typeRegular
StandardsDIN 6537 K
Tool materialSolid Carbide
Tool performanceHigh Performance
Web thinningWeb-Thinned
