Guhring

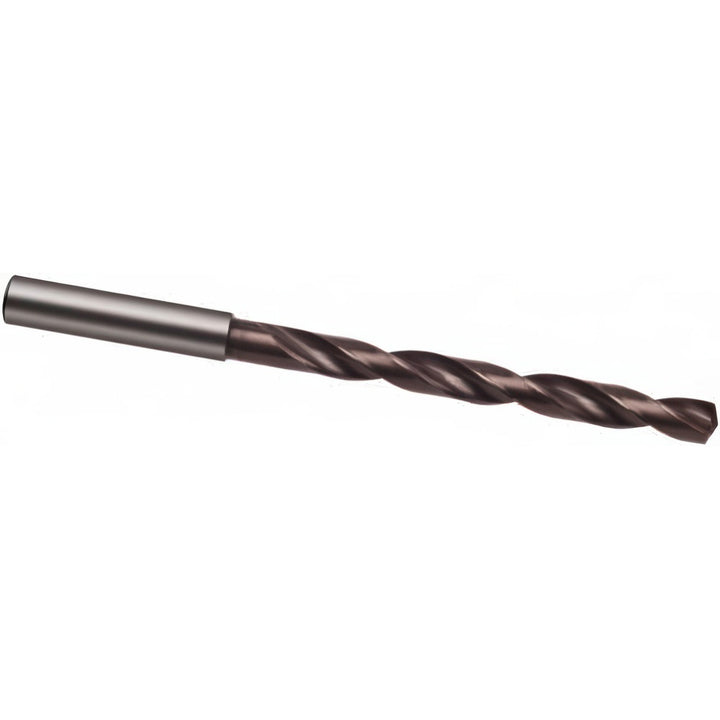

11/32" Solid Carbide Drill Bit, nano-Si, 140° point - Guhring 9085220087300
MFR# 9085220087300Series 8522
$299.17List $383.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size11/32
Coatingnano-Si
Description
The Guhring 9085220087300 is a 11/32" Solid Carbide drill bit with a nano-Si finish, 140° point. Series 8522.
Specifications
Coating finishnano-Si
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in11/32
Drill point angle degrees140
Flute length (mm)87.00
Flute length x diameter ratio7xD
Flute typeSpiral
Material applicationHigh-Tensile Steel; Nickel Alloy; Titanium Alloy
Material gradeK40
Overall length (mm)131
Point typeHF
Shank diameter (mm)10.00
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool materialSolid Carbide
Web thinningWeb-Thinned
