Guhring

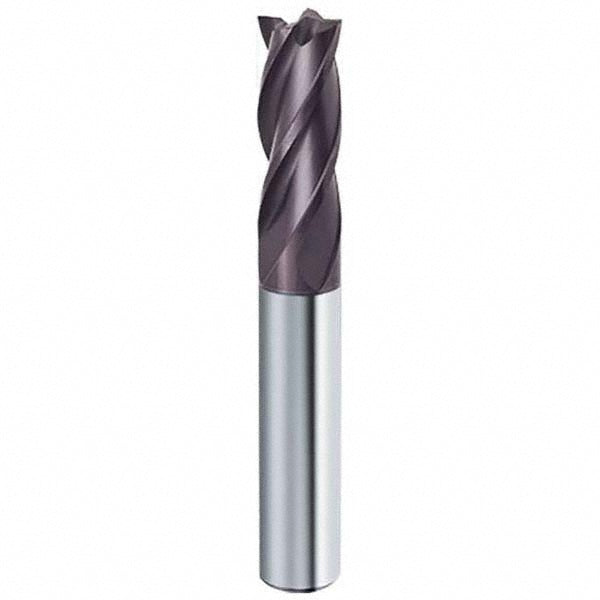

5/16" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9199560079400
MFR# 9199560079400Series 19956
$27.95List $35.22
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes4
MaterialSolid Carbide
CoatingFIREX
Description
The Guhring 9199560079400 is a 5/16 4-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. Suited for cast iron, stainless steel, steel. 13/16 length of cut, 2-1/2 overall length. Series 19956.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle30
Length of cut in13/16
Length typeStandard
Material gradeProprietary
Maximum helix angle30
Mill diameter in5/16
Mill diameter tolerancee8
Number of flutes4
Overall length in2-1/2
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter in5/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
