Guhring

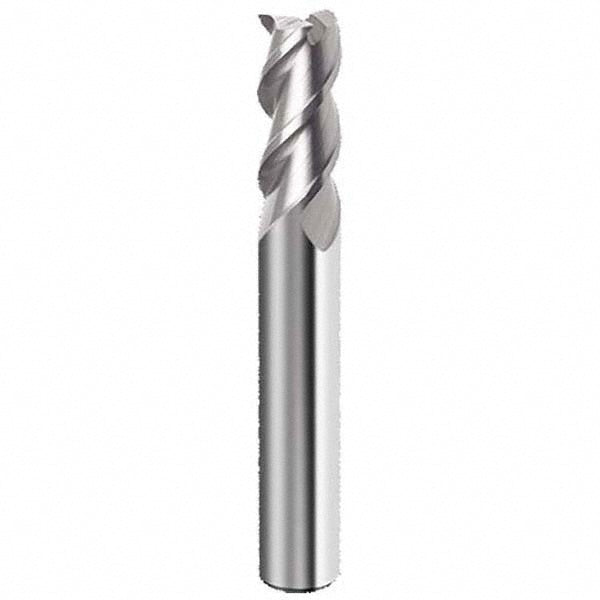

1/4" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9199580063500

MFR# 9199580063500Series 19958

$18.13List $23.24 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingFIREX

Description

The Guhring 9199580063500 is a 1/4 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. 3/4 length of cut, 2-1/2 overall length. Series 19958.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFIREX

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle45

Length of cut in3/4

Length typeStandard

Material gradeProprietary

Maximum helix angle45

Mill diameter in1/4

Mill diameter tolerancee8

Number of flutes3

Overall length in2-1/2

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo
