Guhring

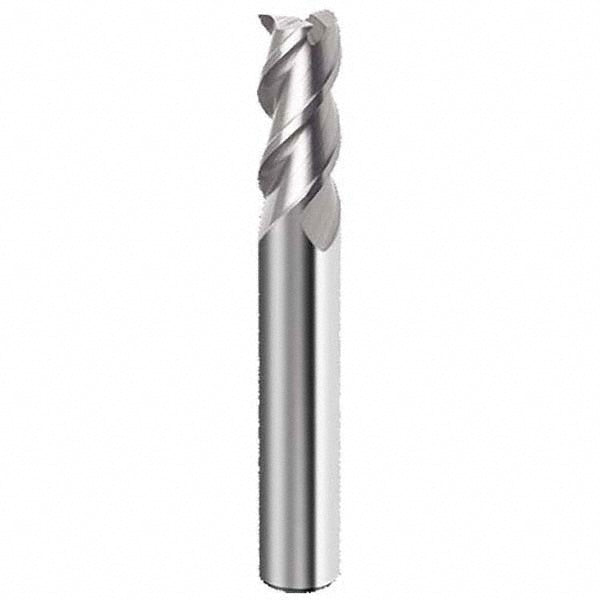

5/16" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, FIREX - Guhring 9199580079400
MFR# 9199580079400Series 19958
$31.12List $39.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/16
Flutes3
MaterialSolid Carbide
CoatingFIREX
Description
The Guhring 9199580079400 is a 5/16 3-flute Solid Carbide (Proprietary) corner radius & corner chamfer end mill with a FIREX finish for longer tool life. 13/16 length of cut, 2-1/2 overall length. Series 19958.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishFIREX
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle45
Length of cut in13/16
Length typeStandard
Material gradeProprietary
Mill diameter in5/16
Mill diameter tolerancee8
Number of flutes3
Overall length in2-1/2
Shank diameter in5/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
