GWS

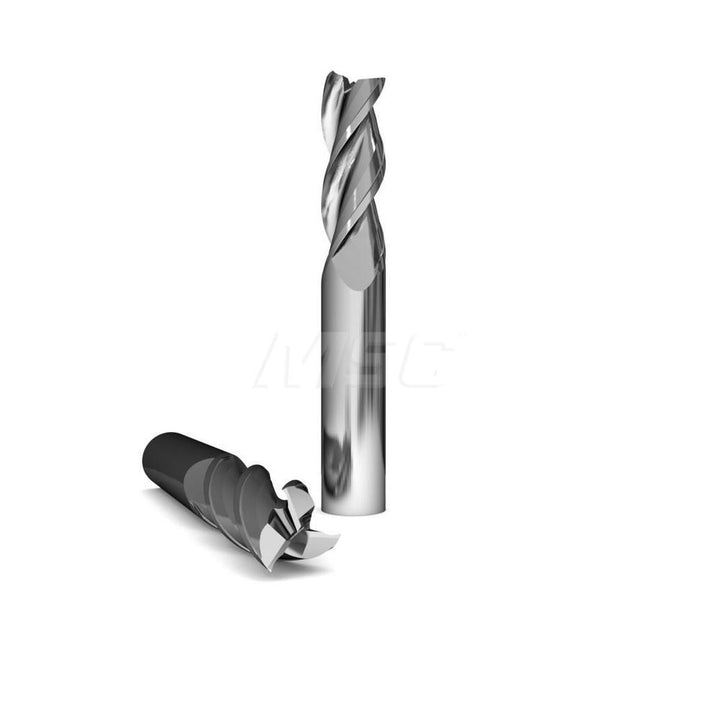

1" 3-Flute Solid Carbide Square End Mill - GWS 100992
MFR# 100992Series 1025; Alumigator
$381.97List $489.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The GWS 100992 is a 1 3-flute Solid Carbide (Submicron) square end mill. 2 length of cut, 4 overall length. Series 1025; Alumigator.
Specifications
CentercuttingYes
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle37
Length of cut in2
Material gradeSubmicron
Mill diameter in1
Number of flutes3
Overall length in4
Shank diameter in1
Variable helixNo
Variable indexNo
