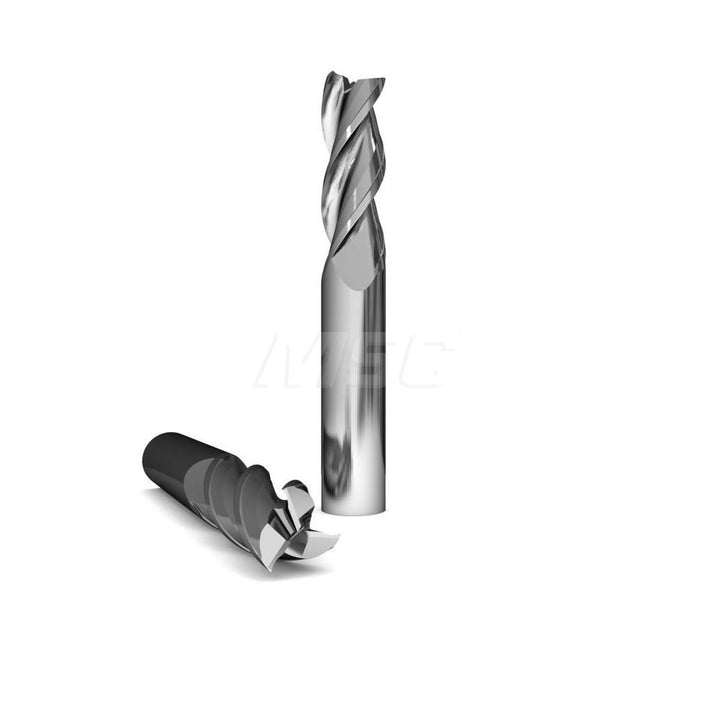

5/8" 3-Flute Solid Carbide Square End Mill - GWS 101012

GWS

5/8" 3-Flute Solid Carbide Square End Mill - GWS 101012

MFR# 101012Series 1025; Alumigator

$239.84List $307.61 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The GWS 101012 is a 5/8 3-flute Solid Carbide (Submicron) square end mill. 2-1/2 length of cut, 5 overall length. Series 1025; Alumigator.

Specifications

CentercuttingYes
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle37
Length of cut in2-1/2
Material gradeSubmicron
Mill diameter in5/8
Number of flutes3
Overall length in5
Shank diameter in5/8
Variable helixNo
Variable indexNo
