3/8" 3-Flute Solid Carbide Square End Mill - GWS 101070

GWS

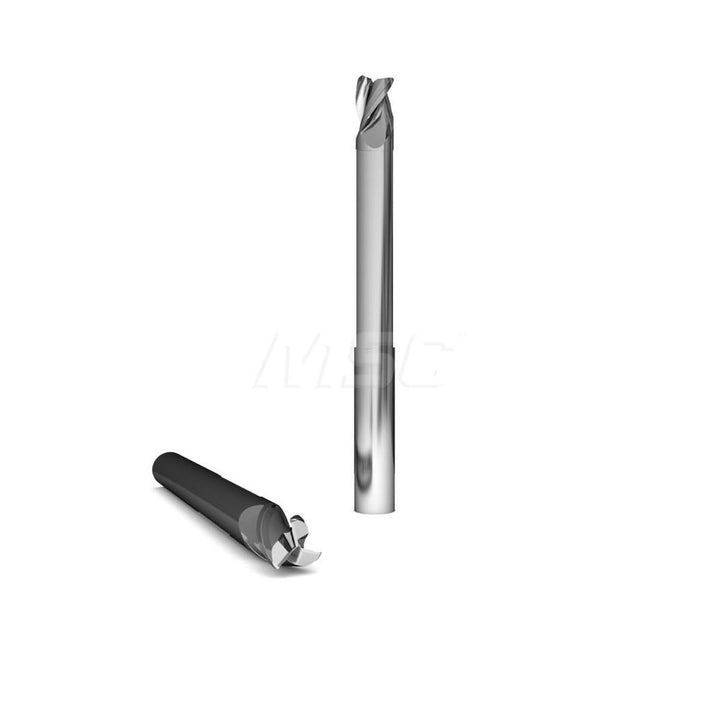

3/8" 3-Flute Solid Carbide Square End Mill - GWS 101070

MFR# 101070Series 1026; Alumigator

$69.91List $88.10 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The GWS 101070 is a 3/8 3-flute Solid Carbide (Submicron) square end mill. 1/2 length of cut, 2-1/2 overall length. Series 1026; Alumigator.

Specifications

CentercuttingYes
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeUpcut
Helix angle37
Length of cut in1/2
Material gradeSubmicron
Mill diameter in3/8
Neck diameter (mm)0.34
Number of flutes3
Overall length in2-1/2
Reach length in1-1/8
Shank diameter in3/8
Variable helixNo
Variable indexNo
