GWS

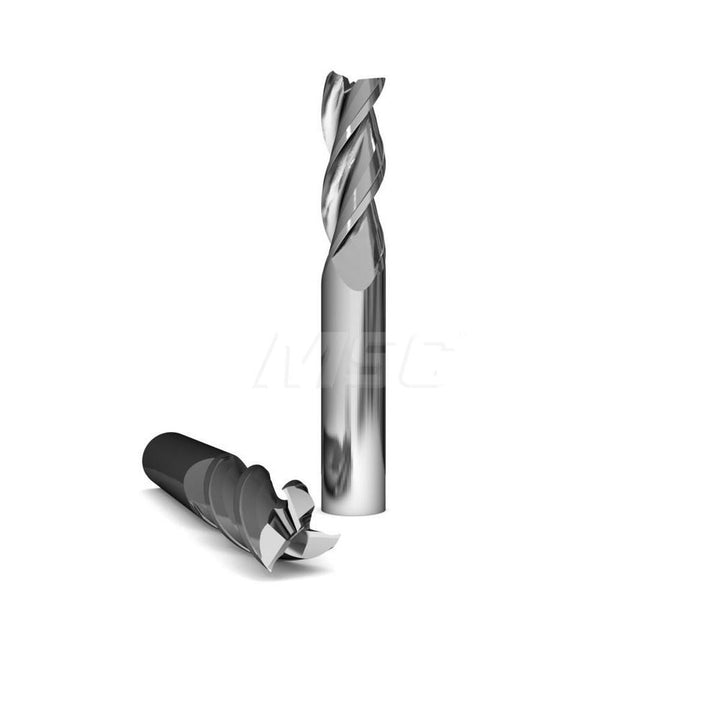

3/32" 3-Flute Solid Carbide Square End Mill, ZrN - GWS 103123
MFR# 103123Series 1025; Alumigator
$52.45List $67.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/32
Flutes3
MaterialSolid Carbide
CoatingZrN
Description
The GWS 103123 is a 3/32 3-flute Solid Carbide (Submicron) square end mill with a ZrN finish for longer tool life. Suited for aluminum & non-ferrous. 5/16 length of cut, 1-1/2 overall length. Series 1025; Alumigator.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishZrN
Coating finish familyZrN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in5/16
Material gradeSubmicron
Mill diameter in3/32
Number of flutes3
Overall length in1-1/2
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in1/8
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
