GWS

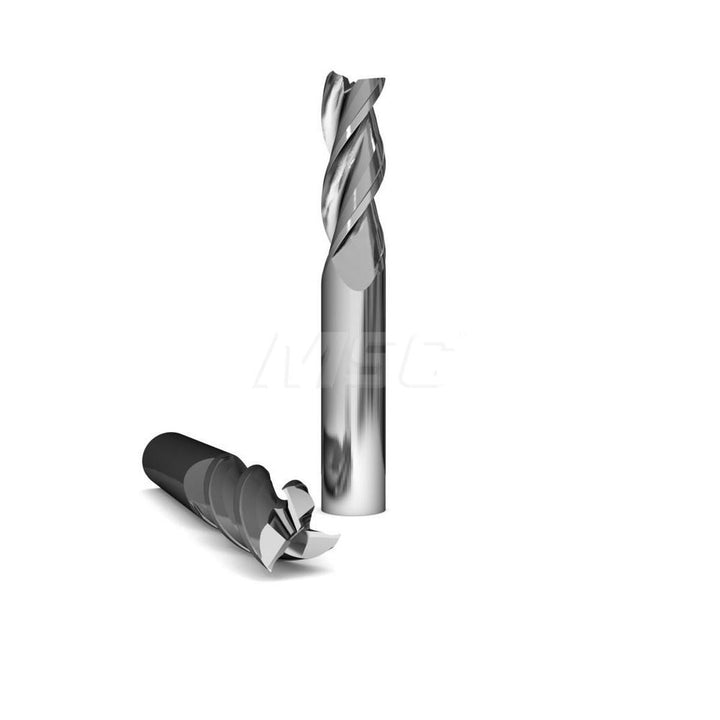

1/4" 3-Flute Solid Carbide Square End Mill, ZrN - GWS 103126
MFR# 103126Series 1025; Alumigator
$56.48List $72.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide
CoatingZrN
Description
The GWS 103126 is a 1/4 3-flute Solid Carbide square end mill. 3/4 length of cut, 2-1/2 overall length. Series 1025; Alumigator.
Specifications
CentercuttingYes
Coating finishZrN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle37
Length of cut in3/4
Mill diameter in1/4
Number of flutes3
Overall length in2-1/2
Shank diameter in1/4
Variable helixNo
Variable indexNo
