GWS

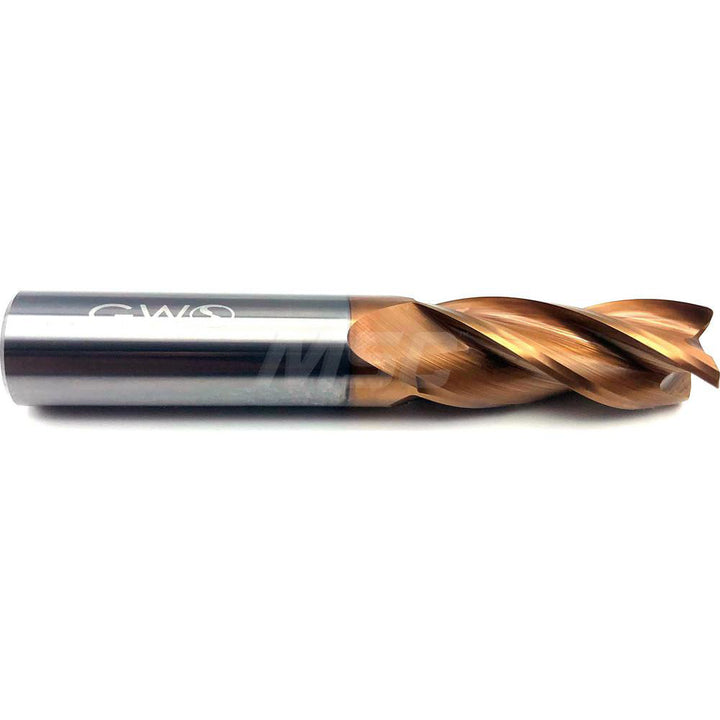

3/16" 4-Flute Solid Carbide Corner Radius End Mill, FX7 - GWS 1034006
MFR# 1034006Series 1034
$51.21List $65.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingFX7
Description
The GWS 1034006 is a 3/16 4-flute Solid Carbide (Submicron) corner radius end mill with a FX7 finish for longer tool life. Suited for steel, stainless steel, cast iron. 5/16 length of cut, 2 overall length. Series 1034.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishFX7
Coolant throughNo
Corner radius0.0050
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleVariable
Length of cut in5/16
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in3/16
Number of flutes4
Overall length in2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in3/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
