GWS

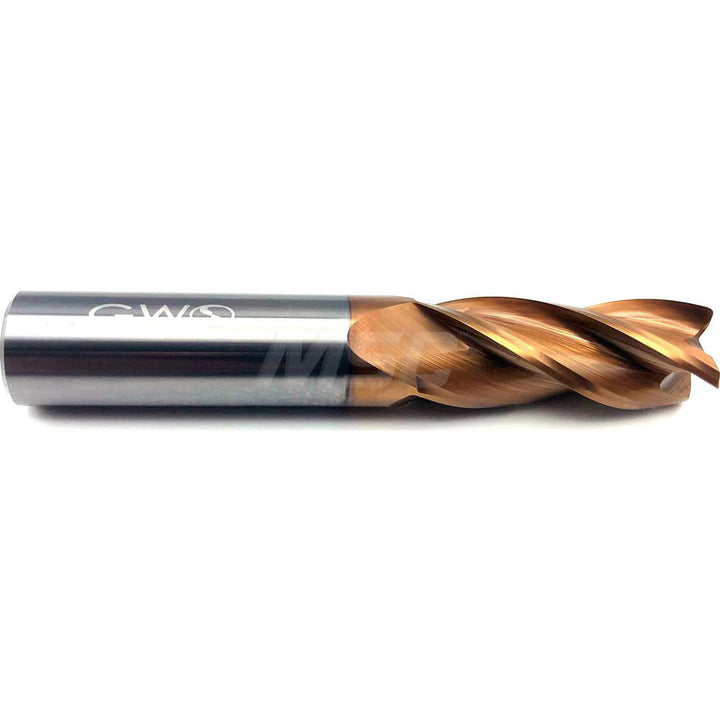

1/2" 4-Flute Solid Carbide Corner Radius End Mill, FX7 - GWS 1034096

MFR# 1034096Series 1034

$147.34List $188.97 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes4

MaterialSolid Carbide

CoatingFX7

Description

The GWS 1034096 is a 1/2 4-flute Solid Carbide (Submicron) corner radius end mill with a FX7 finish for longer tool life. Suited for steel, stainless steel, cast iron. 1 length of cut, 3 overall length. Series 1034.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFX7

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Length of cut in1

Length typeShort

Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in1/2

Number of flutes4

Overall length in3

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
