GWS
1/2in" 3-Flute Solid Carbide Corner Radius End Mill - GWS 118988
MFR# 118988Series 1010
$115.72List $148.42
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description

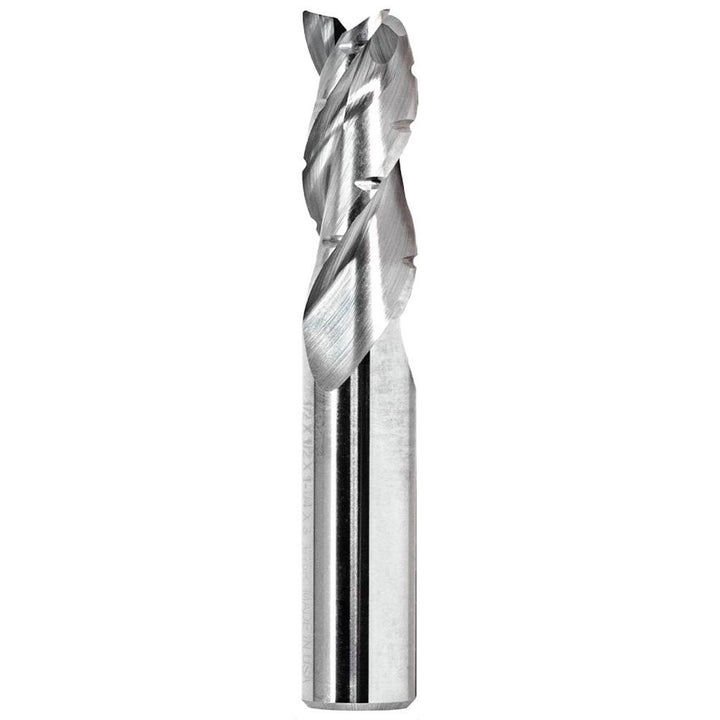

The GWS 118988 is a 1/2in 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 1-1/4in length of cut, 3in overall length. Series 1010.
Specifications
CentercuttingNo
ChipbreakerYes
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in1-1/4in
Length typeStandard
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing
Mill diameter in1/2in
Number of flutes3
Overall length in3in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/2in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
