GWS

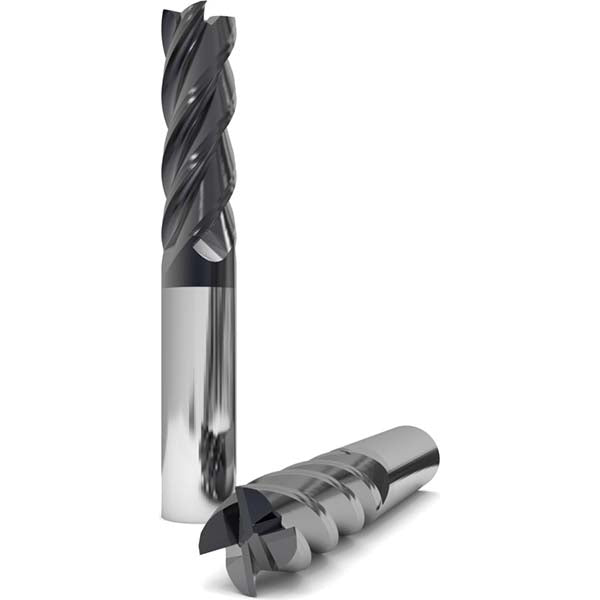

5/16" 4-Flute Solid Carbide Square End Mill, nACRo - GWS 119345

MFR# 119345Series 1030

$66.47List $85.24 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes4

MaterialSolid Carbide

CoatingnACRo

Description

The GWS 119345 is a 5/16 4-flute Solid Carbide (Submicron) square end mill with a nACRo finish for longer tool life. 0.812 length of cut, 2-1/2 overall length. Series 1030.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishnACRo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Length of cut0.812

Length of cut range0.8000 - 1.0000

Length typeStandard

Material gradeSubmicron

Mill diameter in5/16

Number of flutes4

Overall length in2-1/2

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeSquare

Variable helixYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
