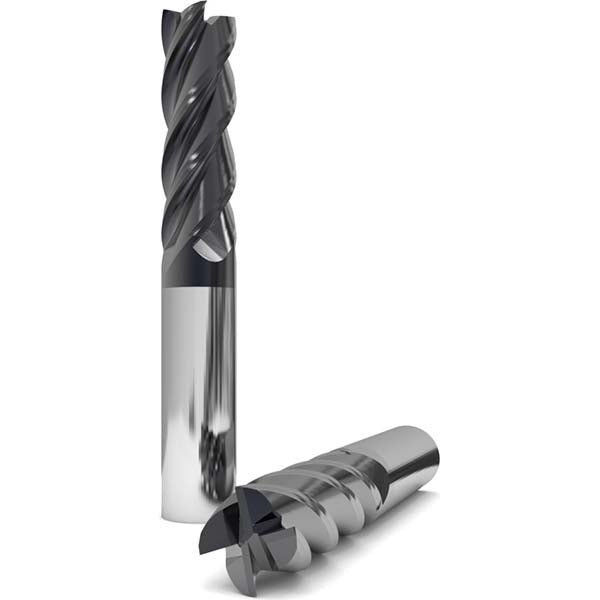

1/2" 4-Flute Solid Carbide Square End Mill, nACRo - GWS 119347

GWS

1/2" 4-Flute Solid Carbide Square End Mill, nACRo - GWS 119347

MFR# 119347Series 1030

$123.05List $157.81 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingnACRo

Description

The GWS 119347 is a 1/2 4-flute Solid Carbide (Submicron) square end mill with a nACRo finish for longer tool life. 1 length of cut, 3 overall length. Series 1030.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishnACRo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeStandard
Material gradeSubmicron
Mill diameter in1/2
Number of flutes4
Overall length in3
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeSquare
Variable helixYes
