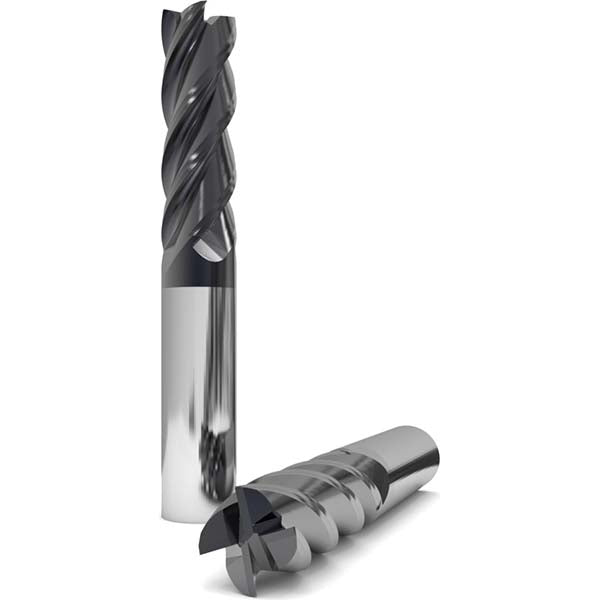

1/8" 4-Flute Solid Carbide Square End Mill, nACRo - GWS 120432

GWS

1/8" 4-Flute Solid Carbide Square End Mill, nACRo - GWS 120432

MFR# 120432Series 1030

$27.36List $35.09 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingnACRo

Description

The GWS 120432 is a 1/8 4-flute Solid Carbide square end mill. 1/4 length of cut, 1-1/2 overall length. Series 1030.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishnACRo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle38
Length of cut in1/4
Length of cut range0.2000 - 0.3000
Length typeStandard
Mill diameter in1/8
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter toleranceh6
Shank typeSquare
Variable helixYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Kennametal1/8" 4-Flute Solid Carbide Square End Mill, AlTiN - Kennametal 6676840 $42.16 Seco1/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Seco 03084131 $25.41 ProMax1/8" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-00822 $24.32 Cleveland1/8" 4-Flute Powdered Metal Square End Mill, TiCN - Cleveland C31939 $49.67
