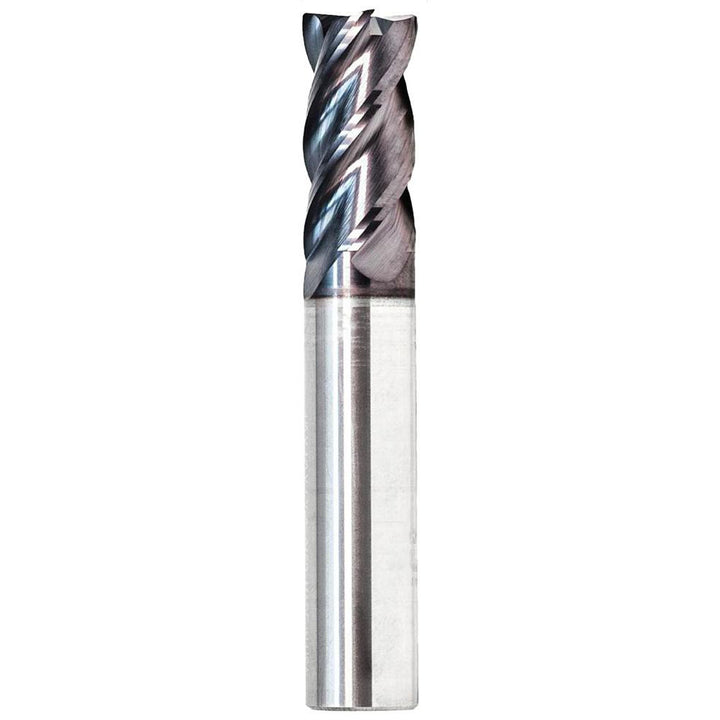

3/8in" 4-Flute Solid Carbide Corner Radius End Mill, FX1 - GWS 120546

GWS

3/8in" 4-Flute Solid Carbide Corner Radius End Mill, FX1 - GWS 120546

MFR# 120546Series 1030

$84.59List $108.49 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8in
Flutes4
MaterialSolid Carbide
CoatingFX1

Description

The GWS 120546 is a 3/8in 4-flute Solid Carbide (Submicron) corner radius end mill with a FX1 finish for longer tool life. Suited for steel, cast iron, superalloys & titanium, hard material. 5/8in length of cut, 2in overall length. Series 1030.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishFX1
Coolant throughNo
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut in5/8in
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in3/8in
Number of flutes4
Overall length in2in
PitchNormal
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium; Hard Material
Secondary workpiece materialStainless Steel
Shank diameter in3/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
