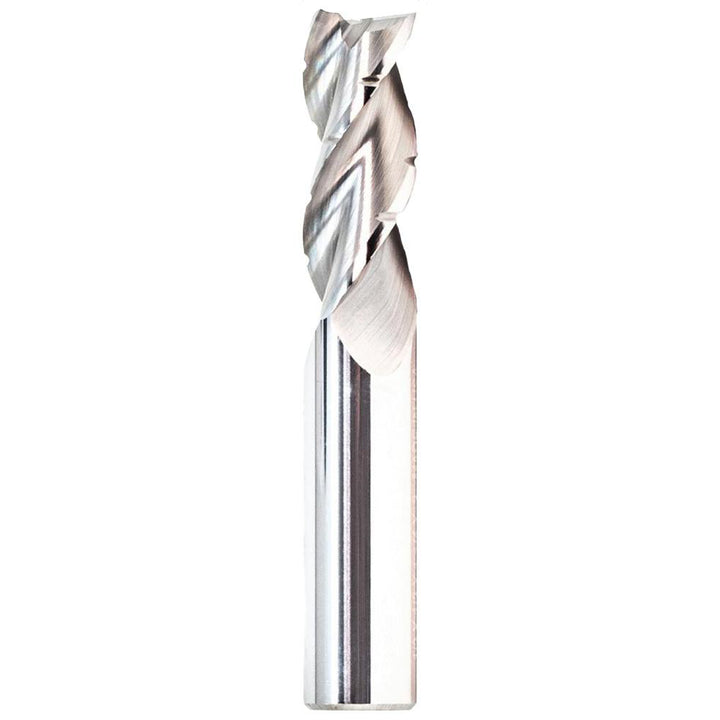

3/4" 3-Flute Solid Carbide Corner Radius End Mill - GWS 120670

GWS

3/4" 3-Flute Solid Carbide Corner Radius End Mill - GWS 120670

MFR# 120670Series 1015

$275.90List $353.86 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes3
MaterialSolid Carbide
CoatingUncoated

Description

The GWS 120670 is a 3/4 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 1-5/8 length of cut, 4 overall length. Series 1015.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishUncoated
Coolant throughNo
Corner radius0.1200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleHigh
Length of cut in1-5/8
Length typeStandard
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing
Mill diameter in3/4
Number of flutes3
Overall length in4
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
