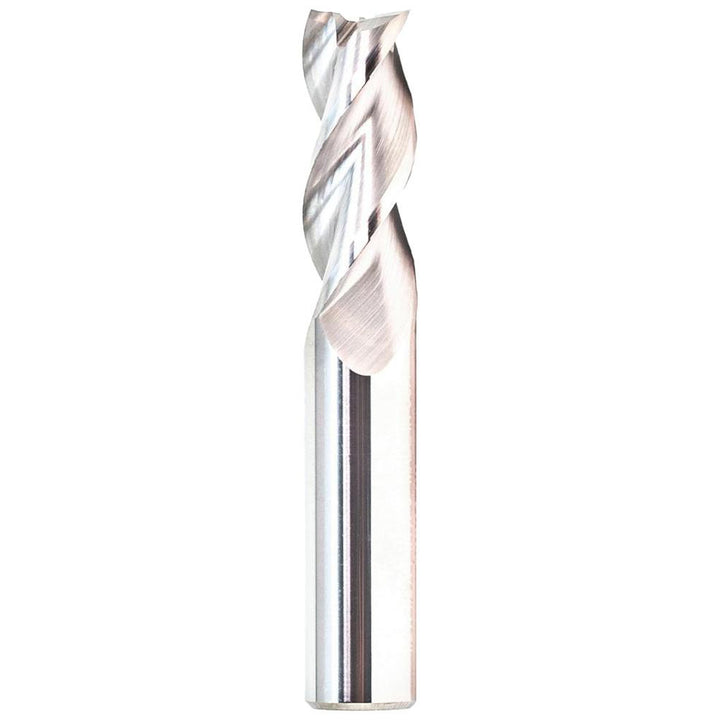

3/16" 3-Flute Solid Carbide Corner Radius End Mill - GWS 120673

MFR# 120673Series 1020

$27.99List $35.90 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes3

MaterialSolid Carbide

CoatingUncoated

Description

The GWS 120673 is a 3/16 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 5/8 length of cut, 2 overall length. Series 1020.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishUncoated

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleHigh

Length of cut in5/8

Length typeLong

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in3/16

Number of flutes3

Overall length in2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
