GWS

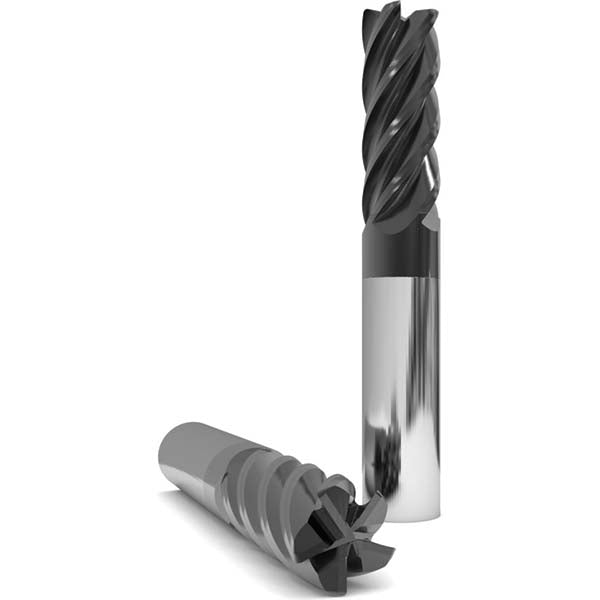

1/4" 5-Flute Solid Carbide Square End Mill, nACRo - GWS 120964
MFR# 120964Series 1035
$82.23List $105.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes5
MaterialSolid Carbide
CoatingnACRo
Description
The GWS 120964 is a 1/4 5-flute Solid Carbide (Submicron) square end mill with a nACRo finish for longer tool life. 1-1/8 length of cut, 3 overall length. Series 1035.
Specifications
ChipbreakerYes
Coating finishnACRo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Length typeStandard
Material gradeSubmicron
Mill diameter in1/4
Number of flutes5
Overall length in3
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeSquare
Variable helixYes
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
