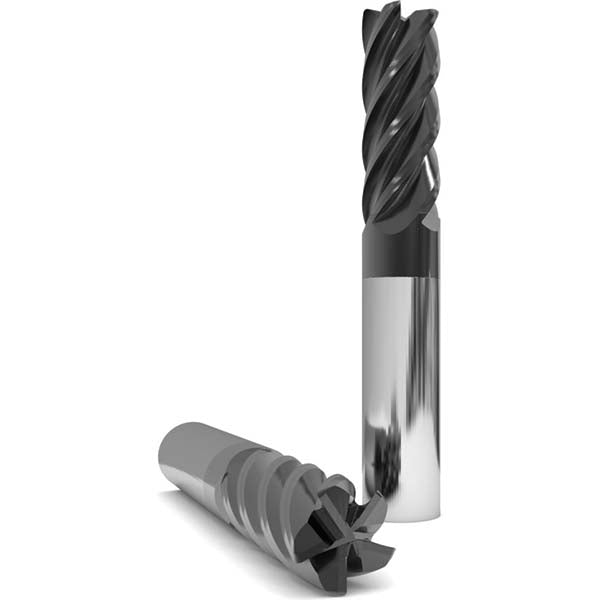

3/8" 5-Flute Solid Carbide Square End Mill, nACRo - GWS 120966

GWS

3/8" 5-Flute Solid Carbide Square End Mill, nACRo - GWS 120966

MFR# 120966Series 1035

$103.36List $132.57 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes5
MaterialSolid Carbide
CoatingnACRo

Description

The GWS 120966 is a 3/8 5-flute Solid Carbide (Submicron) square end mill with a nACRo finish for longer tool life. 1-1/8 length of cut, 3 overall length. Series 1035.

Specifications

Coating finishnACRo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Length typeStandard
Material gradeSubmicron
Mill diameter in3/8
Number of flutes5
Overall length in3
Shank diameter in3/8
Shank typeSquare
Variable helixYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

OSG3/8" 5-Flute Solid Carbide Corner Radius End Mill, EXO - OSG VGM5-0112 $69.52 Kennametal3/8" 5-Flute Solid Carbide Square End Mill - Kennametal 6754899 $170.42 OSG0.3750" 5-Flute Solid Carbide Single End Mill, EXO - OSG VGM5-0108 $68.09 Kennametal3/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 5059624 $173.59
