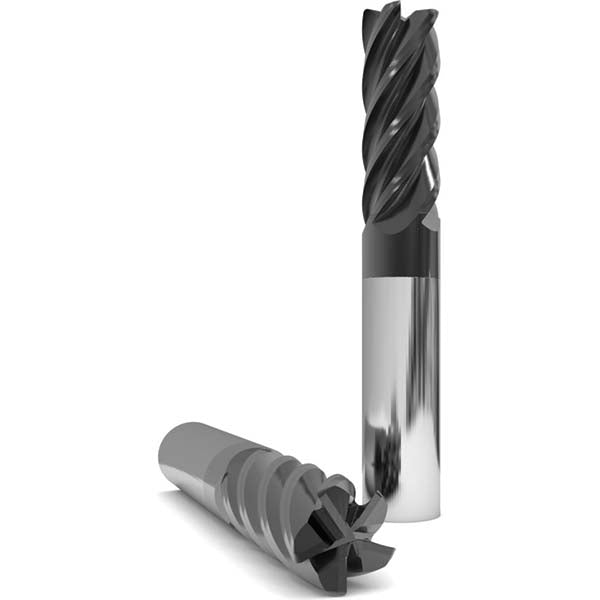

3/8" 5-Flute Solid Carbide Square End Mill, nACRo - GWS 120983

GWS

3/8" 5-Flute Solid Carbide Square End Mill, nACRo - GWS 120983

MFR# 120983Series 1035

$80.47List $103.21 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes5
MaterialSolid Carbide
CoatingnACRo

Description

The GWS 120983 is a 3/8 5-flute Solid Carbide (Submicron) square end mill with a nACRo finish for longer tool life. 5/8 length of cut, 2 overall length. Series 1035.

Specifications

Coating finishnACRo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeStandard
Material gradeSubmicron
Mill diameter in3/8
Number of flutes5
Overall length in2
Shank diameter in3/8
Shank typeSquare
Variable helixYes
