GWS

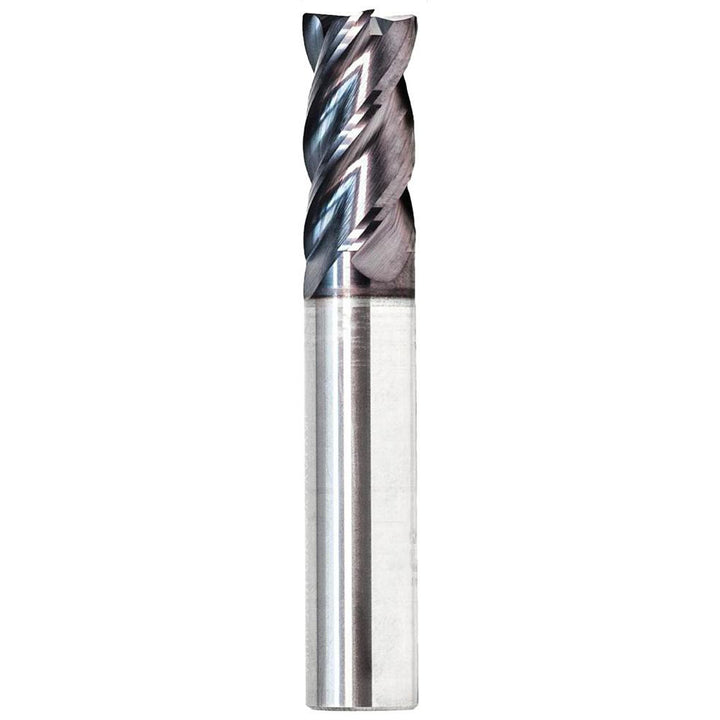

3/16" 4-Flute Solid Carbide Corner Radius End Mill, FX1 - GWS 121518

MFR# 121518Series 1030

$58.32List $74.79 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingFX1

Description

The GWS 121518 is a 3/16 4-flute Solid Carbide (Submicron) corner radius end mill with a FX1 finish for longer tool life. Suited for steel, cast iron, superalloys & titanium, hard material. 1-1/8 length of cut, 2 overall length. Series 1030.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFX1

Coolant throughNo

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleVariable

Length of cut in1-1/8

Length typeLong

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in3/16

Number of flutes4

Overall length in2

PitchNormal

Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium; Hard Material

Secondary workpiece materialStainless Steel

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
