GWS

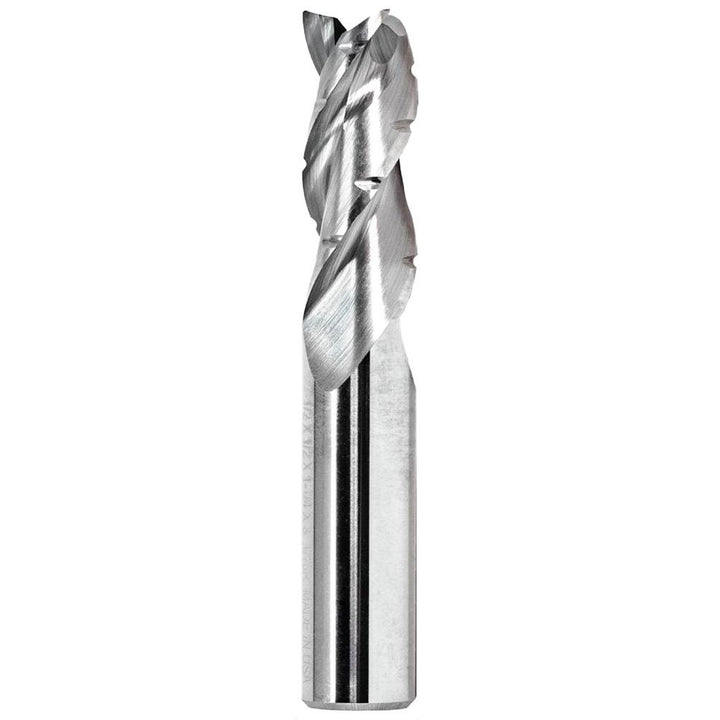

1/4" 3-Flute Solid Carbide Corner Radius End Mill - GWS 122493

MFR# 122493Cat# ART30250-03Series 1010

$57.38List $73.59 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingUncoated

Description

The GWS 122493 is a 1/4 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 3/4 length of cut, 2-1/2 overall length. Series 1010.

Specifications

CentercuttingNo

ChipbreakerYes

Coating finishUncoated

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleHigh

Length of cut in3/4

Length typeStandard

Manufacturers catalog numberART30250-03

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in1/4

Number of flutes3

Overall length in2-1/2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
