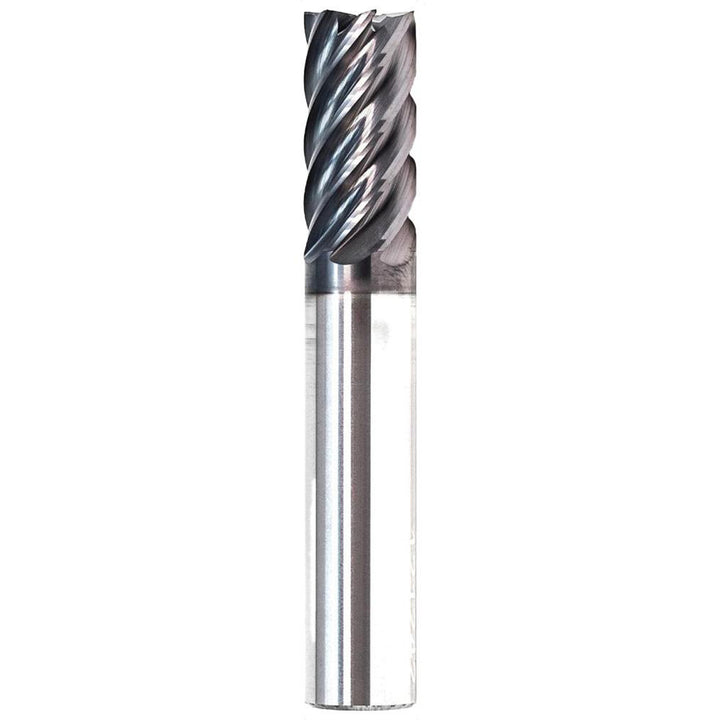

1/4" 7-Flute Solid Carbide Corner Radius End Mill, FX1 - GWS 122625

GWS

1/4" 7-Flute Solid Carbide Corner Radius End Mill, FX1 - GWS 122625

MFR# 122625Series 1040

$77.62List $99.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes7
MaterialSolid Carbide
CoatingFX1

Description

The GWS 122625 is a 1/4 7-flute Solid Carbide (Submicron) corner radius end mill with a FX1 finish for longer tool life. Suited for steel, cast iron, superalloys & titanium, hard material. 1/2 length of cut, 2 overall length. Series 1040.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishFX1
Coolant throughNo
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleVariable
Length of cut in1/2
Length typeShort
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeFinishing
Mill diameter in1/4
Number of flutes7
Overall length in2
PitchClose
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium; Hard Material
Secondary workpiece materialStainless Steel
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
