GWS

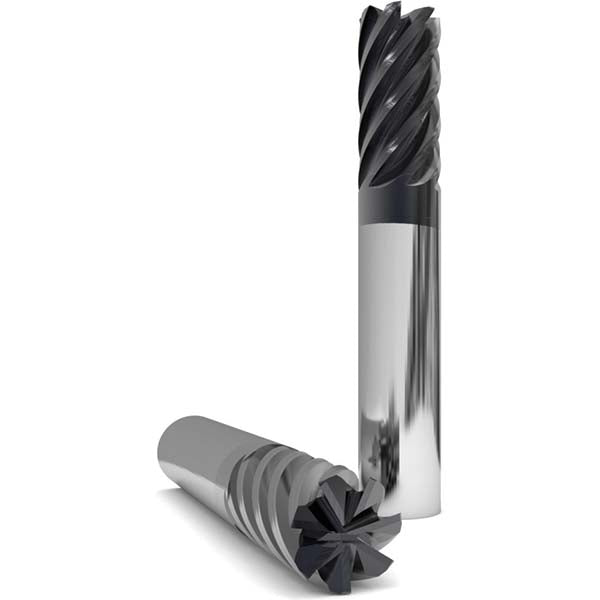

1" 7-Flute Solid Carbide Square End Mill, nACo - GWS 122797

MFR# 122797Series 1040

$270.35List $346.74 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes7

MaterialSolid Carbide

CoatingnACo

Description

The GWS 122797 is a 1 7-flute Solid Carbide (Submicron) square end mill with a nACo finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, hardened materials. 1 length of cut, 4 overall length. Series 1040.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishnACo

Coating finish familynACo

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angleVariable

Length of cut in1

Length of cut range1.0000 - 1.2500

Length typeStandard

Material gradeSubmicron

Mill diameter in1

Number of flutes7

Overall length in4

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Hardened Materials

Shank diameter in1

Shank typeSquare

Single or double endSingle

System of measurementFractional Inch

Variable helixYes

Variable indexYes
