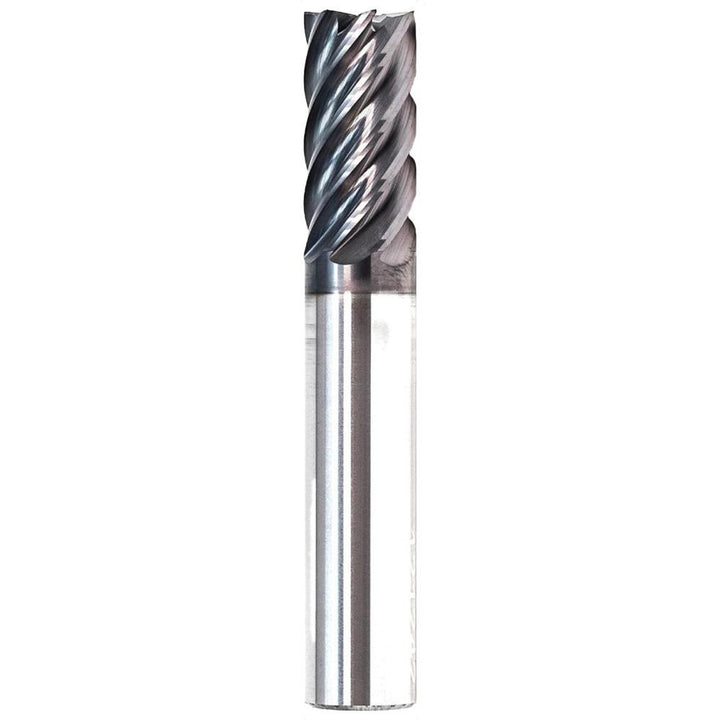

1/2in" 7-Flute Solid Carbide Corner Radius End Mill, FX1 - GWS 122905

GWS

1/2in" 7-Flute Solid Carbide Corner Radius End Mill, FX1 - GWS 122905

MFR# 122905Series 1040

$210.09List $269.45 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes7
MaterialSolid Carbide
CoatingFX1

Description

The GWS 122905 is a 1/2in 7-flute Solid Carbide (Submicron) corner radius end mill with a FX1 finish for longer tool life. Suited for steel, cast iron, superalloys & titanium, hard material. 1-3/4in length of cut, 4in overall length. Series 1040.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishFX1
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut in1-3/4in
Length typeLong
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeFinishing
Mill diameter in1/2in
Number of flutes7
Overall length in4in
PitchClose
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium; Hard Material
Secondary workpiece materialStainless Steel
Shank diameter in1/2in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
