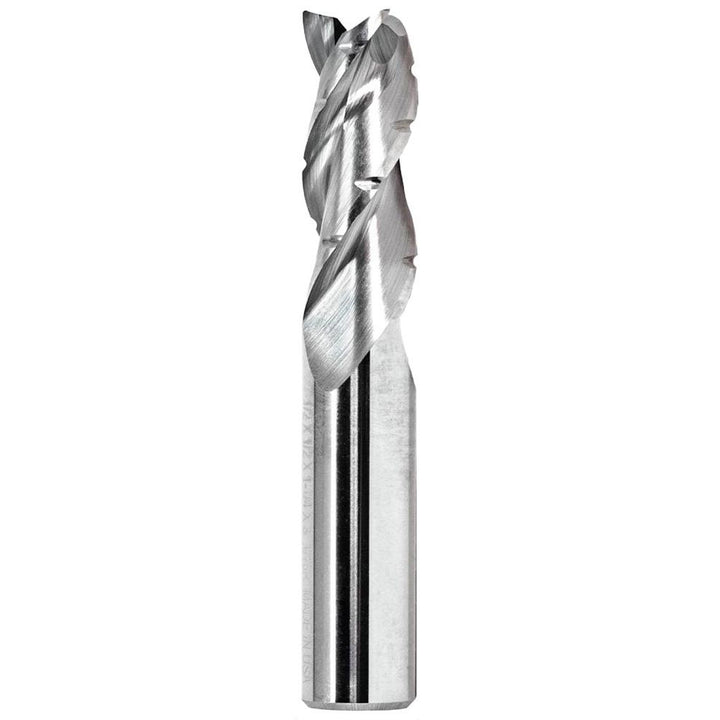

3/8in" 3-Flute Solid Carbide Corner Radius End Mill - GWS 125668

GWS

3/8in" 3-Flute Solid Carbide Corner Radius End Mill - GWS 125668

MFR# 125668Series 1010

$111.40List $142.87 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The GWS 125668 is a 3/8in 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 1-1/2in length of cut, 4in overall length. Series 1010.

Specifications

CentercuttingNo
ChipbreakerYes
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0600
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in1-1/2in
Length typeLong
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing
Mill diameter in3/8in
Number of flutes3
Overall length in4in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in3/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
