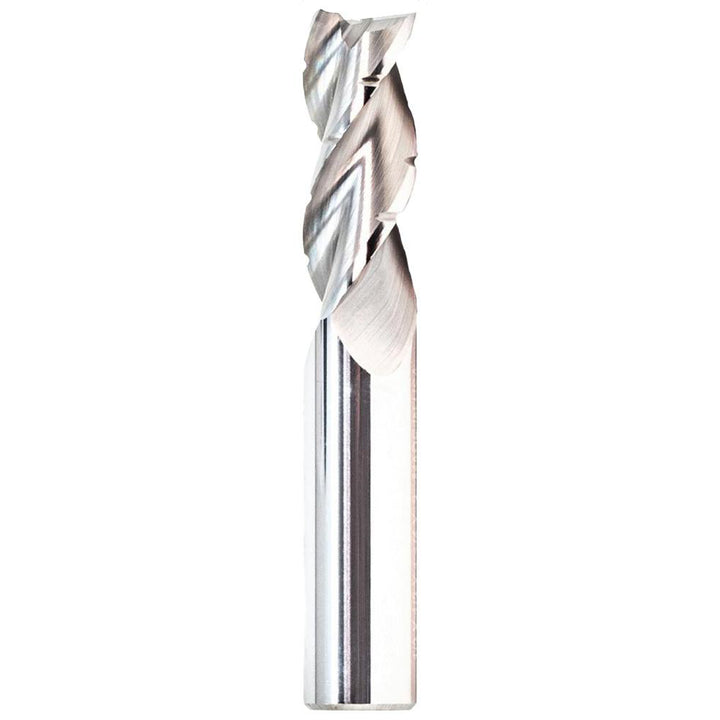

1/4in" 3-Flute Solid Carbide Corner Radius End Mill - GWS 125985

GWS

1/4in" 3-Flute Solid Carbide Corner Radius End Mill - GWS 125985

MFR# 125985Series 1015

$57.00List $73.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4in
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The GWS 125985 is a 1/4in 3-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 3/4in length of cut, 2-1/2in overall length. Series 1015.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Helix styleHigh
Length of cut in3/4in
Length typeStandard
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing
Mill diameter in1/4in
Number of flutes3
Overall length in2-1/2in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
