1/8in" 4-Flute Solid Carbide Corner Radius End Mill, FX3 - GWS 310017

GWS

1/8in" 4-Flute Solid Carbide Corner Radius End Mill, FX3 - GWS 310017

MFR# 310017Series 2100

$47.10List $60.40 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8in
Flutes4
MaterialSolid Carbide
CoatingFX3

Description

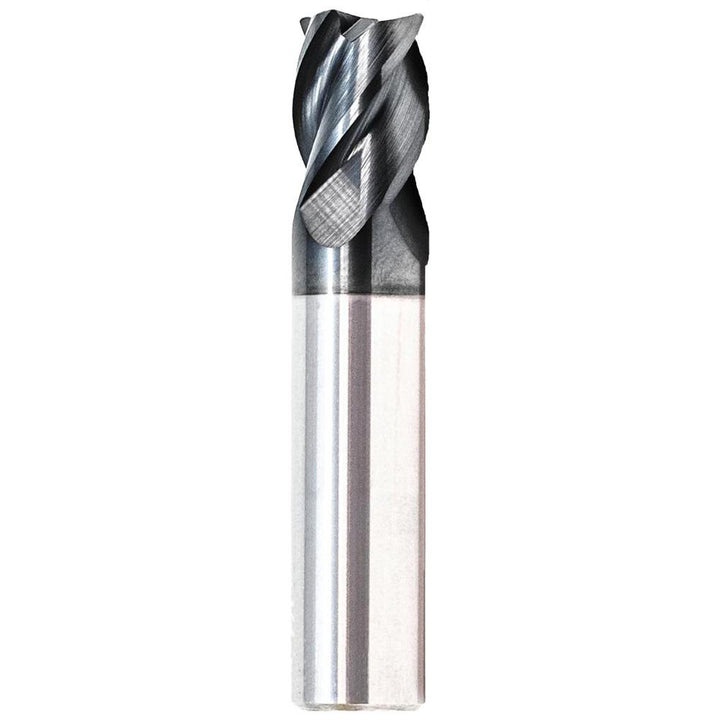

The GWS 310017 is a 1/8in 4-flute Solid Carbide (Submicron) corner radius end mill with a FX3 finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 1/2in length of cut, 2in overall length. Series 2100.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishFX3
Coolant throughNo
Corner radius0.0100
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut in1/2in
Length typeLong
Material applicationSteel; Stainless Steel; Superalloys & Titanium; Cast Iron
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in1/8in
Number of flutes4
Overall length in2in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Secondary workpiece materialCast Iron
Shank diameter in1/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
