GWS

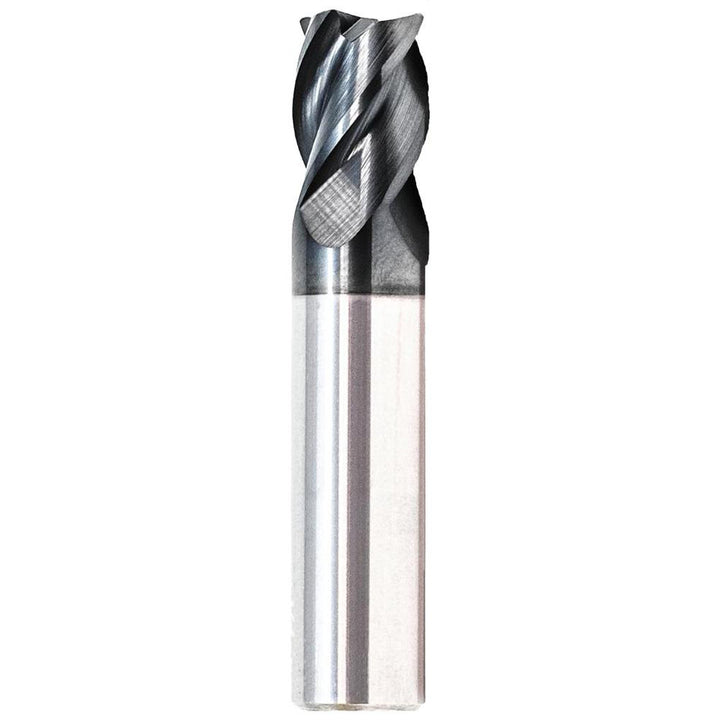

3/4in" 4-Flute Solid Carbide Corner Radius End Mill, FX3 - GWS 310458
MFR# 310458Series 2100
$268.31List $344.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/4in
Flutes4
MaterialSolid Carbide
CoatingFX3
Description
The GWS 310458 is a 3/4in 4-flute Solid Carbide (Submicron) corner radius end mill with a FX3 finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 1-5/8in length of cut, 4in overall length. Series 2100.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishFX3
Coolant throughNo
Corner radius0.0600
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut in1-5/8in
Length typeStandard
Material applicationSteel; Stainless Steel; Superalloys & Titanium; Cast Iron
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in3/4in
Number of flutes4
Overall length in4in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Secondary workpiece materialCast Iron
Shank diameter in3/4in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
