GWS

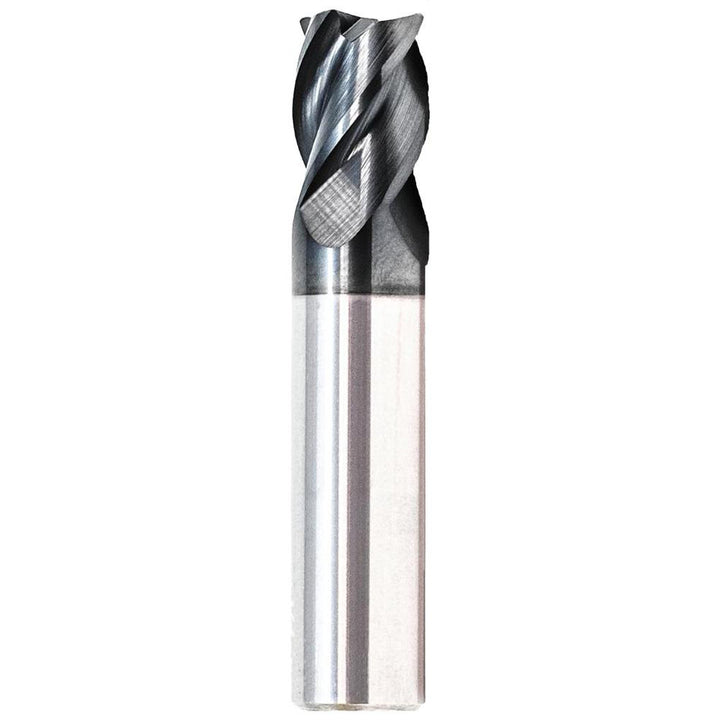

1" 4-Flute Solid Carbide Corner Radius End Mill, FX3 - GWS 310545

MFR# 310545Series 2100

$421.82List $541.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes4

MaterialSolid Carbide

CoatingFX3

Description

The GWS 310545 is a 1 4-flute Solid Carbide (Submicron) corner radius end mill with a FX3 finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 2 length of cut, 4 overall length. Series 2100.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFX3

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleVariable

Length of cut in2

Length typeShort

Material applicationSteel; Stainless Steel; Superalloys & Titanium; Cast Iron

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in1

Number of flutes4

Overall length in4

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Secondary workpiece materialCast Iron

Shank diameter in1

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
