1-1/4" 4-Flute Solid Carbide Square End Mill, ALCRO-MAX - GWS 310676

GWS

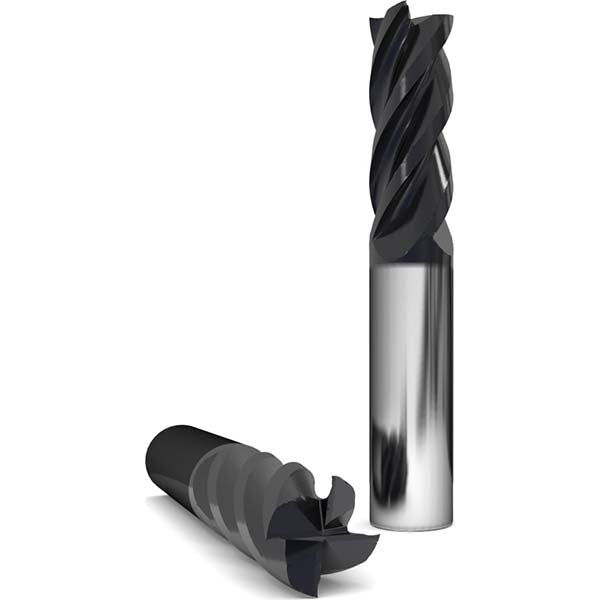

1-1/4" 4-Flute Solid Carbide Square End Mill, ALCRO-MAX - GWS 310676

MFR# 310676Series 2100

$936.53List $1,201.14 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1-1/4
Flutes4
MaterialSolid Carbide
CoatingALCRO-MAX

Description

The GWS 310676 is a 1-1/4 4-flute Solid Carbide (Submicron) square end mill with a ALCRO-MAX finish for longer tool life. 4-1/2 length of cut, 7 overall length. Series 2100.

Specifications

CentercuttingYes
ChipbreakerYes
Coating finishALCRO-MAX
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle38
Length of cut in4-1/2
Length of cut range2.0000+
Length typeStandard
Material gradeSubmicron
Mill diameter in1-1/4
Number of flutes4
Overall length in7
Shank diameter in1-1/4
Shank diameter toleranceh6
Shank typeSquare
Variable helixNo
