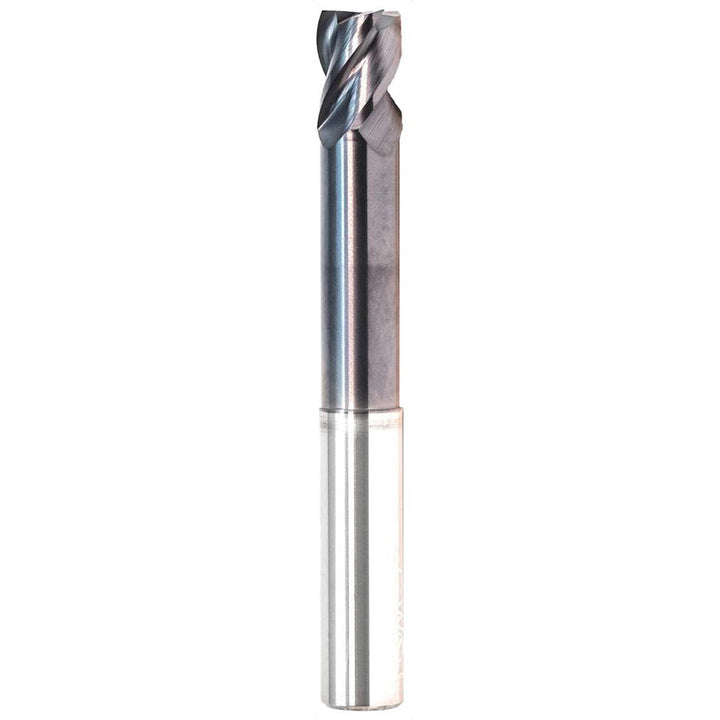

3/8in" 4-Flute Solid Carbide Corner Radius End Mill, FX3 - GWS 310845

GWS

3/8in" 4-Flute Solid Carbide Corner Radius End Mill, FX3 - GWS 310845

MFR# 310845Series 2105

$128.81List $165.21 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8in
Flutes4
MaterialSolid Carbide
CoatingFX3

Description

The GWS 310845 is a 3/8in 4-flute Solid Carbide (Submicron) corner radius end mill with a FX3 finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 1/2in length of cut, 6in overall length. Series 2105.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishFX3
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut in1/2in
Length typeShort
Material applicationSteel; Stainless Steel; Superalloys & Titanium; Cast Iron
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in3/8in
Number of flutes4
Overall length in6in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Reach length in3-1/8
Secondary workpiece materialCast Iron
Shank diameter in3/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
