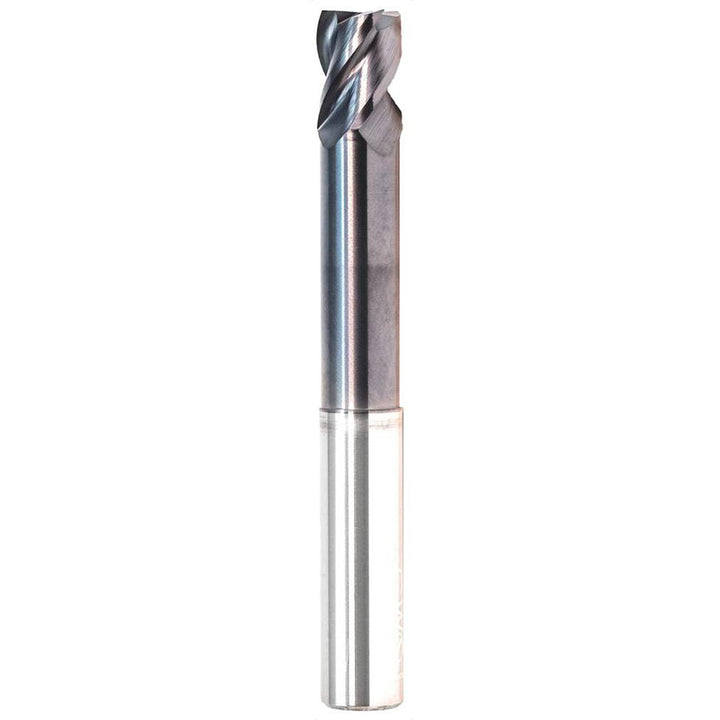

1/2in" 4-Flute Solid Carbide Corner Radius End Mill, FX3 - GWS 310900

GWS

1/2in" 4-Flute Solid Carbide Corner Radius End Mill, FX3 - GWS 310900

MFR# 310900Series 2105

$155.97List $200.04 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes4
MaterialSolid Carbide
CoatingFX3

Description

The GWS 310900 is a 1/2in 4-flute Solid Carbide (Submicron) corner radius end mill with a FX3 finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 5/8in length of cut, 4in overall length. Series 2105.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishFX3
Coolant throughNo
Corner radius0.1200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut in5/8in
Length typeShort
Material applicationSteel; Stainless Steel; Superalloys & Titanium; Cast Iron
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in1/2in
Number of flutes4
Overall length in4in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Reach length in2-1/4
Secondary workpiece materialCast Iron
Shank diameter in1/2in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
