GWS

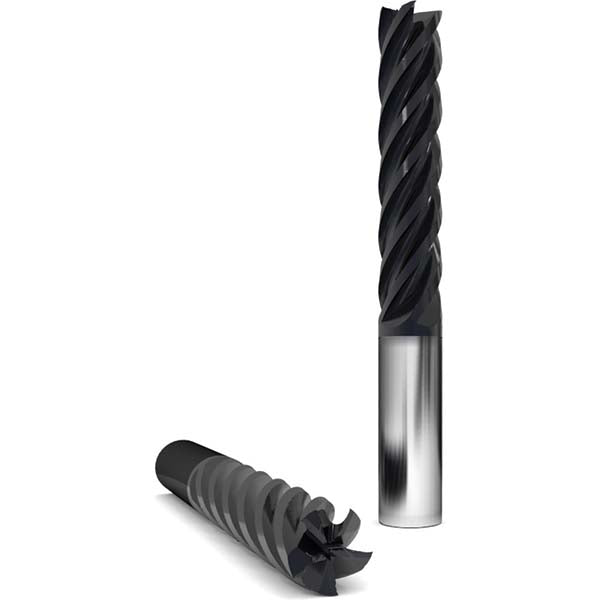

3/16" 5-Flute Solid Carbide Square End Mill, ALCRO-MAX - GWS 311395

MFR# 311395Series 2205

$48.49List $62.19 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes5

MaterialSolid Carbide

CoatingALCRO-MAX

Description

The GWS 311395 is a 3/16 5-flute Solid Carbide (Submicron) square end mill with a ALCRO-MAX finish for longer tool life. 3/4 length of cut, 2-1/2 overall length. Series 2205.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishALCRO-MAX

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Helix angle38

Length of cut in3/4

Length of cut range0.7000 - 0.8000

Length typeStandard

Material gradeSubmicron

Mill diameter in3/16

Number of flutes5

Overall length in2-1/2

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeSquare

Variable helixNo
