GWS

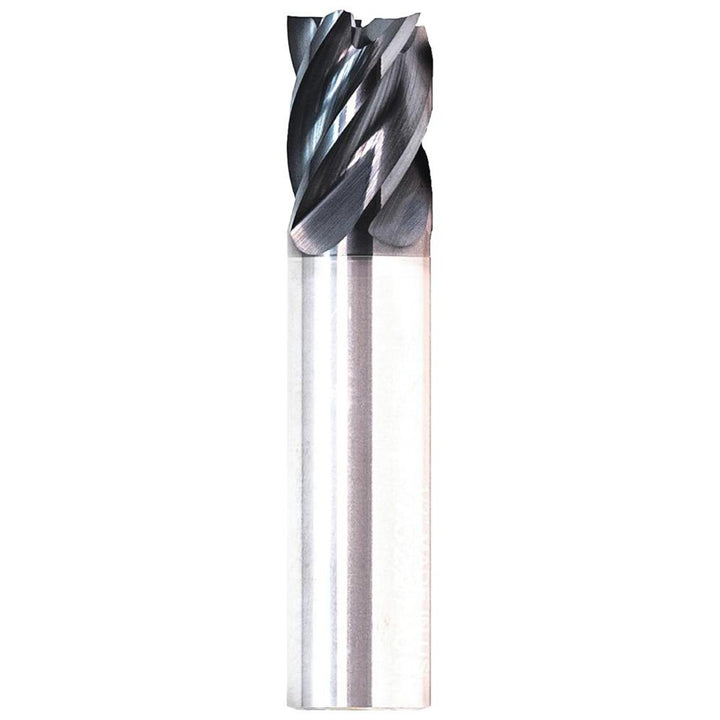

3/16" 5-Flute Solid Carbide Corner Radius End Mill, FX3 - GWS 311398

MFR# 311398Series 2205

$56.41List $72.35 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes5

MaterialSolid Carbide

CoatingFX3

Description

The GWS 311398 is a 3/16 5-flute Solid Carbide (Submicron) corner radius end mill with a FX3 finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 3/4 length of cut, 2-1/2 overall length. Series 2205.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFX3

Coolant throughNo

Corner radius0.0100

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleVariable

Length of cut in3/4

Length typeLong

Material applicationSteel; Stainless Steel; Superalloys & Titanium; Cast Iron

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in3/16

Number of flutes5

Overall length in2-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Secondary workpiece materialCast Iron

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
