1/4" 5-Flute Solid Carbide Square End Mill - GWS 311461

GWS

1/4" 5-Flute Solid Carbide Square End Mill - GWS 311461

MFR# 311461Series 2205

$57.40List $73.63 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes5
MaterialSolid Carbide

Description

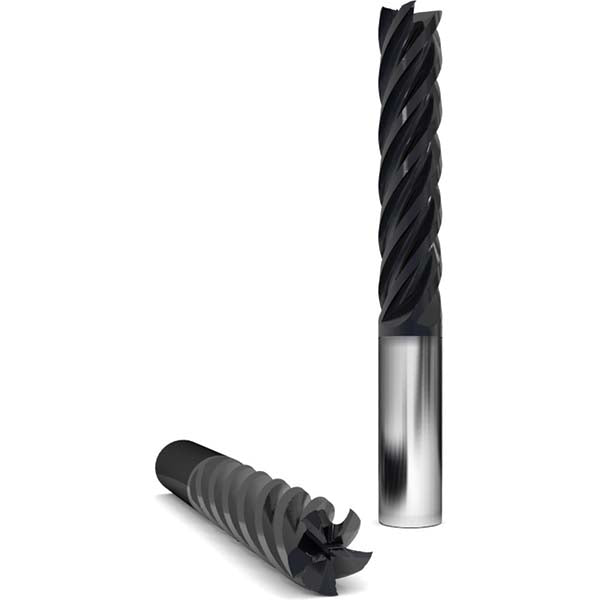

The GWS 311461 is a 1/4 5-flute Solid Carbide square end mill. 1-1/4 length of cut, 3 overall length. Series 2205.

Specifications

CentercuttingYes
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle38
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeStandard
Mill diameter in1/4
Number of flutes5
Overall length in3
Shank diameter in1/4
Shank typeSquare
Variable helixNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
