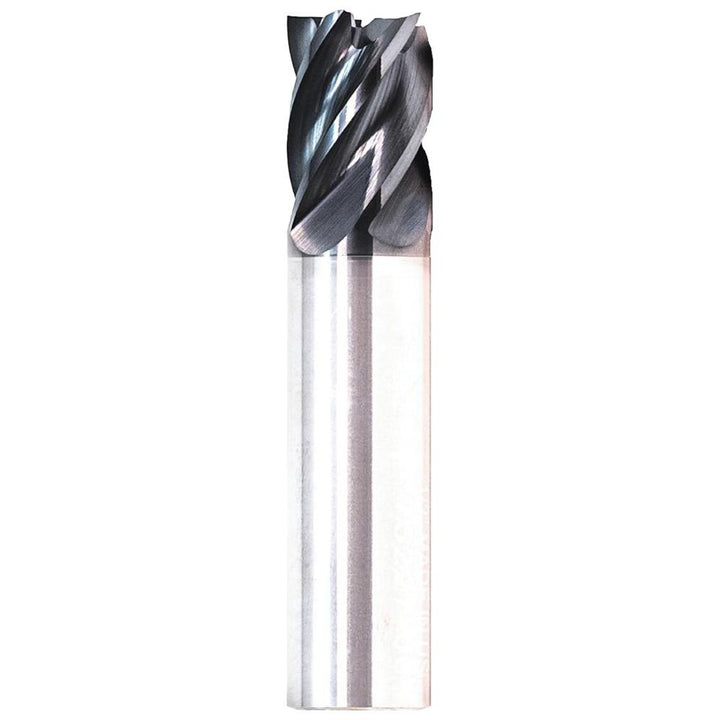

3/8in" 5-Flute Solid Carbide Corner Radius End Mill, FX3 - GWS 311590

GWS

3/8in" 5-Flute Solid Carbide Corner Radius End Mill, FX3 - GWS 311590

MFR# 311590Series 2205

$95.71List $122.76 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8in
Flutes5
MaterialSolid Carbide
CoatingFX3

Description

The GWS 311590 is a 3/8in 5-flute Solid Carbide (Submicron) corner radius end mill with a FX3 finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 1-1/2in length of cut, 4in overall length. Series 2205.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishFX3
Coolant throughNo
Corner radius0.0900
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut in1-1/2in
Length typeLong
Material applicationSteel; Stainless Steel; Superalloys & Titanium; Cast Iron
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in3/8in
Number of flutes5
Overall length in4in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Secondary workpiece materialCast Iron
Shank diameter in3/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixYes
Variable indexYes
