3/4" 7-Flute Solid Carbide Corner Radius End Mill, FX3 - GWS 312739

MFR# 312739Series 2215

$305.90List $392.34 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes7

MaterialSolid Carbide

CoatingFX3

Description

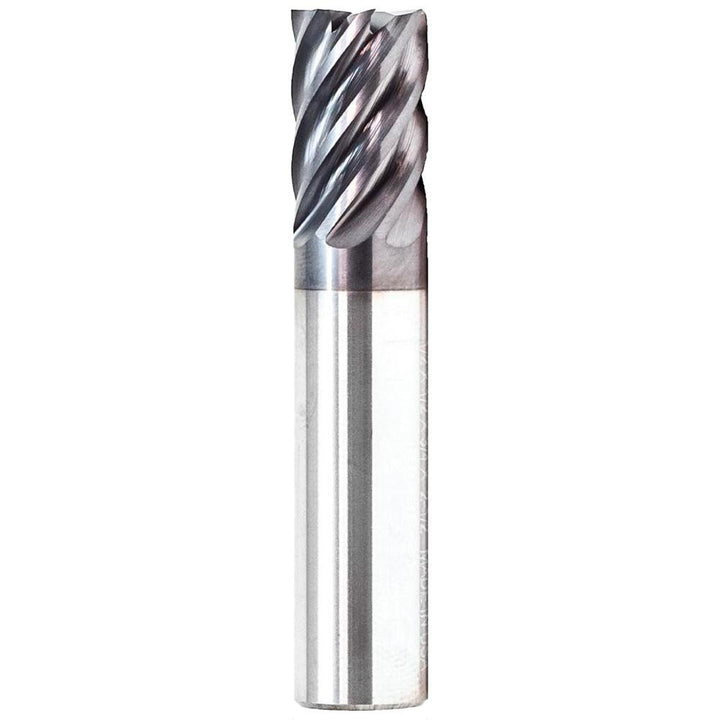

The GWS 312739 is a 3/4 7-flute Solid Carbide (Submicron) corner radius end mill with a FX3 finish for longer tool life. Suited for steel, stainless steel, superalloys & titanium. 1-5/8 length of cut, 4 overall length. Series 2215.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishFX3

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleHigh

Length of cut in1-5/8

Length typeStandard

Material applicationSteel; Stainless Steel; Superalloys & Titanium; Cast Iron

Material gradeSubmicron

Material removal typeFinishing

Mill diameter in3/4

Number of flutes7

Overall length in4

PitchClose

Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium

Secondary workpiece materialCast Iron

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
