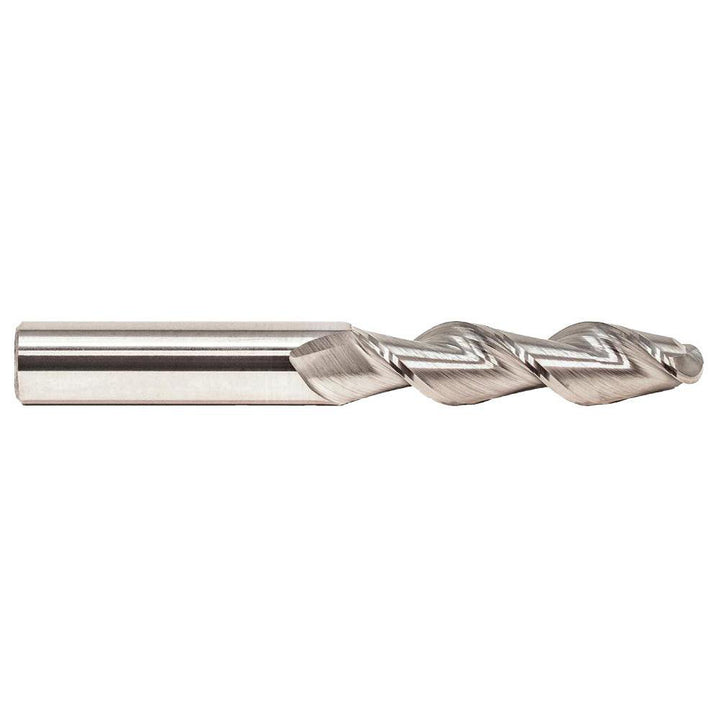

1/8in" 2-Flute Solid Carbide Ball End Mill, NF1 - GWS 313567

GWS

1/8in" 2-Flute Solid Carbide Ball End Mill, NF1 - GWS 313567

MFR# 313567Series 2015

$32.95List $42.26 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8in
Flutes2
MaterialSolid Carbide
CoatingNF1

Description

The GWS 313567 is a 1/8in 2-flute Solid Carbide (Submicron) ball end mill with a NF1 finish for longer tool life. Suited for non-ferrous metal. 1/4in length of cut, 1-1/2in overall length. Series 2015.

Specifications

ChipbreakerNo
Coating finishNF1
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle45
Helix styleHigh
Length of cut in1/4in
Length typeStandard
Manufacturers catalog number313567
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in1/8in
Neck length0.0000
Nose radius0.0625
Number of flutes2
Overall length in1-1/2in
Primary workpiece materialNon-Ferrous Metal
Reach length0.2500
Secondary workpiece materialSteel; Stainless Steel; Hard Material
Shank diameter in1/8in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
