GWS

5/16" 2-Flute Solid Carbide Corner Radius End Mill, NF1 - GWS 313888

MFR# 313888Cat# 25031213NS34015C5Series 2012

$103.76List $133.07 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes2

MaterialSolid Carbide

CoatingNF1

Description

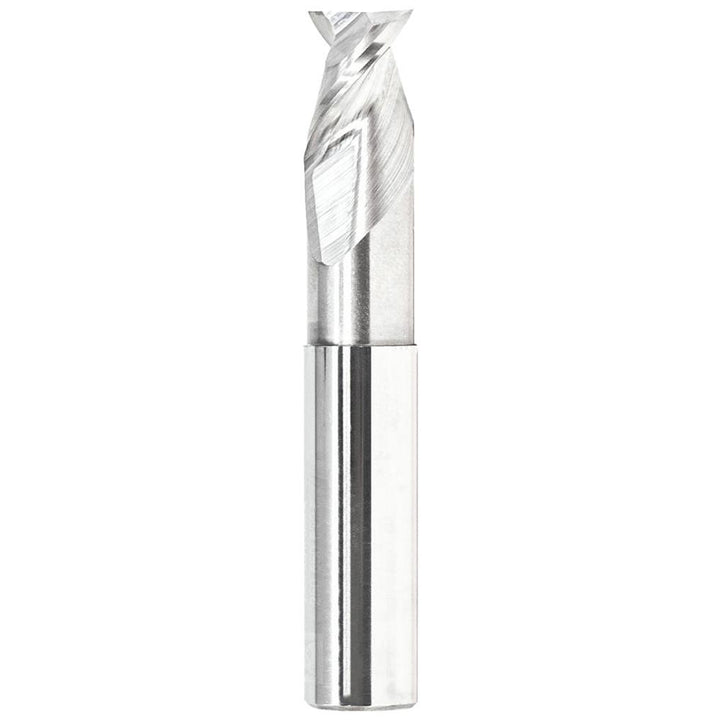

The GWS 313888 is a 5/16 2-flute Solid Carbide (Submicron) corner radius end mill with a NF1 finish for longer tool life. Suited for non-ferrous metal. 13/16 length of cut, 4 overall length. Series 2012.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishNF1

Coolant throughNo

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Helix styleHigh

Length of cut in13/16

Length typeStandard

Manufacturers catalog number25031213NS34015C5

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in5/16

Number of flutes2

Overall length in4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in2-1/8

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
