GWS

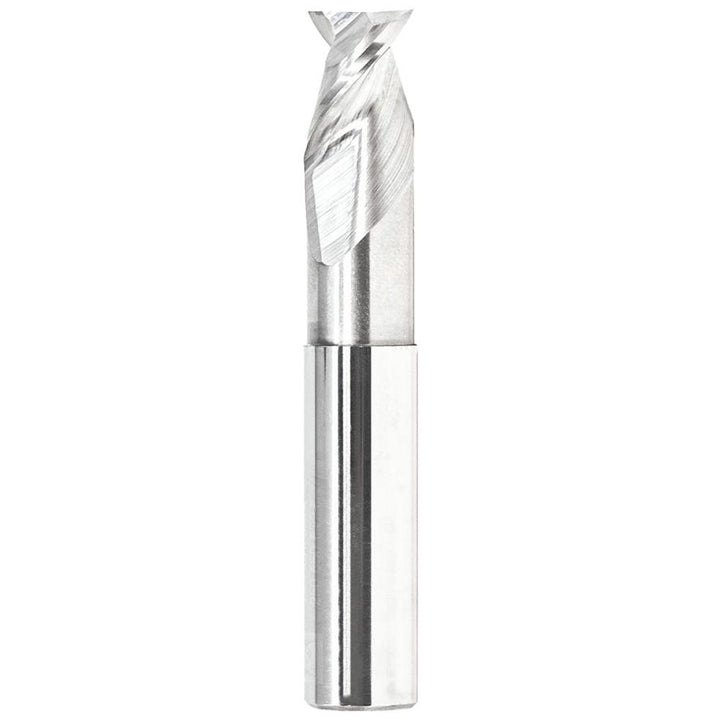

1/2" 2-Flute Solid Carbide Corner Radius End Mill, NF1 - GWS 313974
MFR# 313974Cat# 25050010NS38120C5Series 2012
$161.68List $207.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes2
MaterialSolid Carbide
CoatingNF1
Description
The GWS 313974 is a 1/2 2-flute Solid Carbide (Submicron) corner radius end mill with a NF1 finish for longer tool life. Suited for non-ferrous metal. 5/8 length of cut, 4 overall length. Series 2012.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishNF1
Coolant throughNo
Corner radius0.1200
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleHigh
Length of cut in5/8
Length typeShort
Manufacturers catalog number25050010NS38120C5
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing
Mill diameter in1/2
Number of flutes2
Overall length in4
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in2-3/8
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
