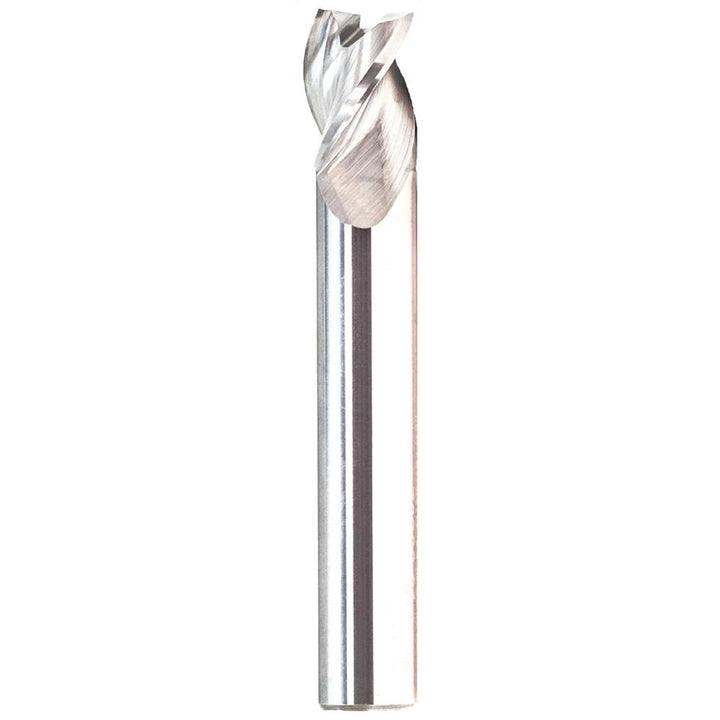

5/16" 3-Flute Solid Carbide Corner Radius End Mill, NF1 - GWS 314670

MFR# 314670Cat# 35031213060C5Series 2030

$68.14List $87.39 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes3

MaterialSolid Carbide

CoatingNF1

Description

The GWS 314670 is a 5/16 3-flute Solid Carbide (Submicron) corner radius end mill with a NF1 finish for longer tool life. Suited for non-ferrous metal. 13/16 length of cut, 2-1/2 overall length. Series 2030.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishNF1

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Helix styleHigh

Length of cut in13/16

Length typeStandard

Manufacturers catalog number35031213060C5

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in5/16

Number of flutes3

Overall length in2-1/2

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in5/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
