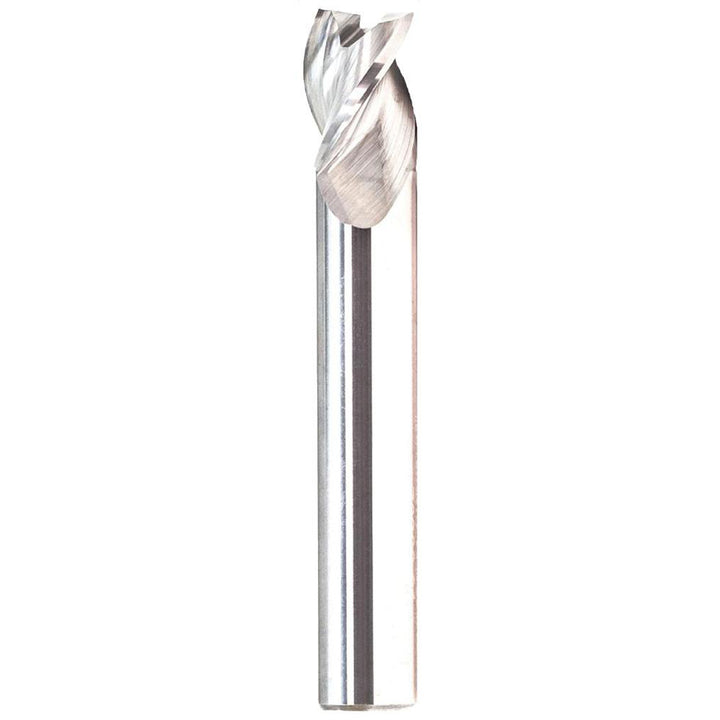

1" 3-Flute Solid Carbide Corner Radius End Mill, NF1 - GWS 315070

GWS

1" 3-Flute Solid Carbide Corner Radius End Mill, NF1 - GWS 315070

MFR# 315070Cat# 35010032090C5Series 2030

$526.49List $675.24 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes3
MaterialSolid Carbide
CoatingNF1

Description

The GWS 315070 is a 1 3-flute Solid Carbide (Submicron) corner radius end mill with a NF1 finish for longer tool life. Suited for non-ferrous metal. 2 length of cut, 5 overall length. Series 2030.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishNF1
Coolant throughNo
Corner radius0.0900
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleHigh
Length of cut in2
Length typeShort
Manufacturers catalog number35010032090C5
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing
Mill diameter in1
Number of flutes3
Overall length in5
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
