GWS

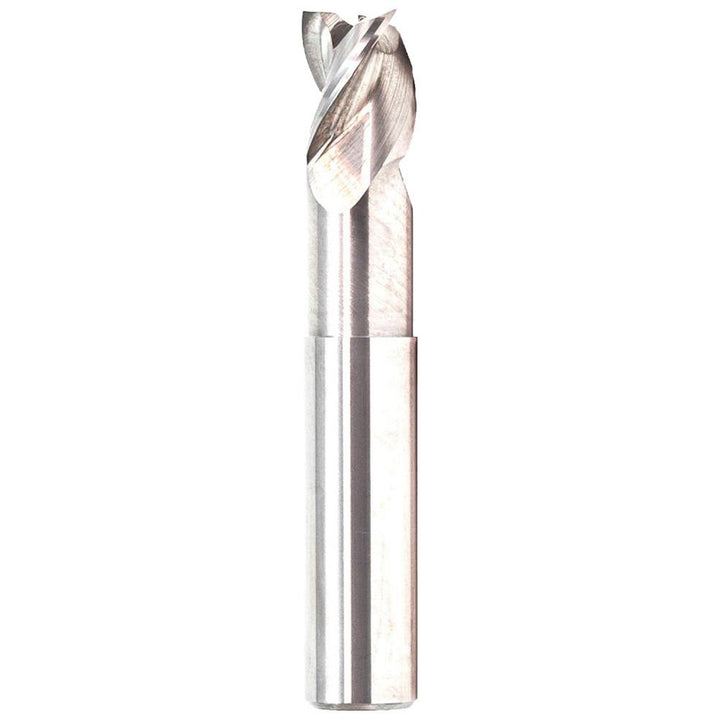

3/16" 3-Flute Solid Carbide Corner Radius End Mill, NF1 - GWS 315374
MFR# 315374Cat# 35018705NS22010C5Series 2032
$61.85List $77.94
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter3/16
Flutes3
MaterialSolid Carbide
CoatingNF1
Description
The GWS 315374 is a 3/16 3-flute Solid Carbide (Submicron) corner radius end mill with a NF1 finish for longer tool life. Suited for non-ferrous metal. 5/16 length of cut, 3 overall length. Series 2032.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishNF1
Coolant throughNo
Corner radius0.0100
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeHelical
For use withEnd Mill Holders
Helix styleHigh
Length of cut in5/16
Length typeShort
Manufacturers catalog number35018705NS22010C5
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing
Mill diameter in3/16
Number of flutes3
Overall length in3
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in1-3/8
Shank diameter in3/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
