GWS

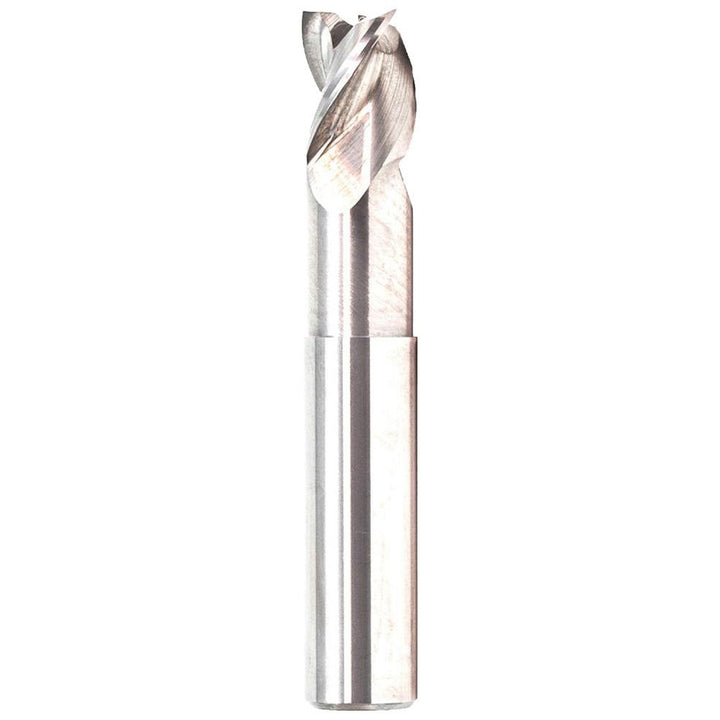

1/2" 3-Flute Solid Carbide Corner Radius End Mill, NF1 - GWS 315546

MFR# 315546Cat# 35050010NS38120C5Series 2032

$164.32List $210.76 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingNF1

Description

The GWS 315546 is a 1/2 3-flute Solid Carbide (Submicron) corner radius end mill with a NF1 finish for longer tool life. Suited for non-ferrous metal. 5/8 length of cut, 4 overall length. Series 2032.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishNF1

Coolant throughNo

Corner radius0.1200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withEnd Mill Holders

Helix styleHigh

Length of cut in5/8

Length typeShort

Manufacturers catalog number35050010NS38120C5

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing

Mill diameter in1/2

Number of flutes3

Overall length in4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in2-3/8

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
