HALDER

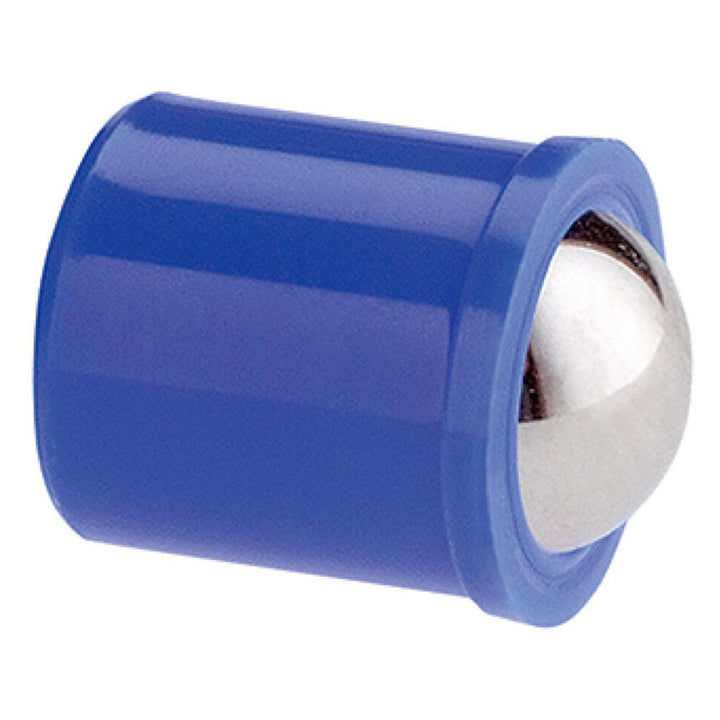

Spring Plunger - HALDER 22080.0405
MFR# 22080.0405
$1.41List $1.78
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The HALDER 22080.0405 is a thermoplastic spring plunger.
Specifications
Ball diameter (mm)4.00
Ball materialStainless Steel
Body diameter (mm)5.00
Body length6.00
Body materialThermoplastic
Final end force n9.40
FinishMatte
FlangeYes
Flange diameter5.6000
Flange thickness (mm)1.00
Initial end force n6.00
Length under flange (mm)5.00
Locking elementNo
Maximum ball reach (mm)1.00
Tolerance (mm)+0.100
