HALDER

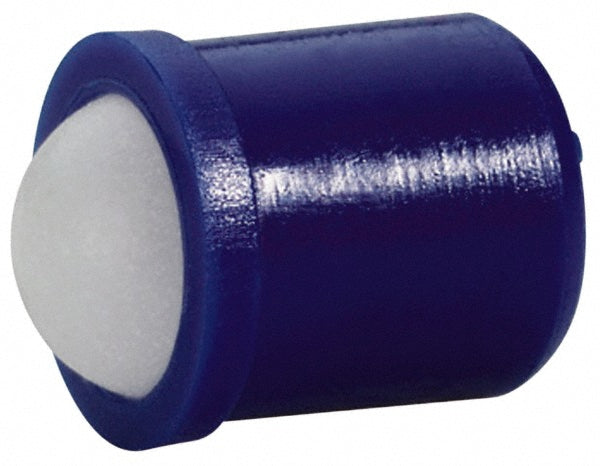

Spring Plunger - HALDER 22080.0608
MFR# 22080.0608
$2.70List $3.33
Save 18%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The HALDER 22080.0608 is a thermoplastic spring plunger.
Specifications
Ball diameter0.1560
Ball materialThermoplastic
Body diameter (mm)8.00
Body length9.00
Body materialThermoplastic
Final end force n18.00
FinishMatte
FlangeYes
Flange diameter8.5000
Flange thickness (mm)1.00
Initial end force n8.00
Length under flange (mm)8.00
Locking elementNo
Maximum ball reach (mm)1.90
Tolerance (mm)+0.100
