3/16" 2-Flute Polycrystalline Diamond Ball End Mill, Diamond - Harvey Tool 12012

Harvey Tool

3/16" 2-Flute Polycrystalline Diamond Ball End Mill, Diamond - Harvey Tool 12012

MFR# 12012Series Diamond End Mills for Non-Ferrous Materials - PCD Diamond - Ball, Material Specific End Mills

$511.17List $586.41 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes2
MaterialPolycrystalline Diamond
CoatingDiamond

Description

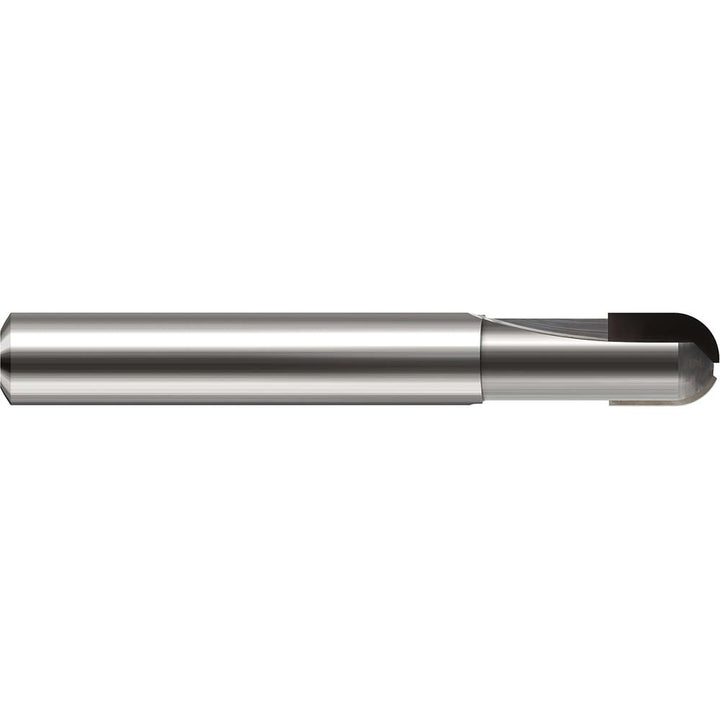

The Harvey Tool 12012 is a 3/16 2-flute Polycrystalline Diamond ball end mill. Suited for non-ferrous metal, plastic, graphite, carbon fiber. 1/4in length of cut, 2in overall length. Series Diamond End Mills for Non-Ferrous Materials - PCD Diamond - Ball, Material Specific End Mills.

Specifications

ChipbreakerNo
Coating finishDiamond
Coolant throughNo
Cutting directionRight Hand
End mill materialPolycrystalline Diamond
Extended reachYes
Flute directionRight Hand
Flute typeStraight
Helix angle0
Helix styleLow
Length of cut in1/4in
Length typeStub
Manufacturers catalog number12012
Material removal typeRoughing & Finishing
Mill diameter in3/16
Mill diameter tolerance+0.0000/-0.0020 in
Neck length in3/8in
Nose radius0.0935
Number of flutes2
Overall length in2in
Primary workpiece materialNon-Ferrous Metal; Plastic; Graphite; Carbon Fiber
Reach length in5/8
Shank diameter in3/16in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementDecimal Inch
Variable helixNo
Variable indexNo
